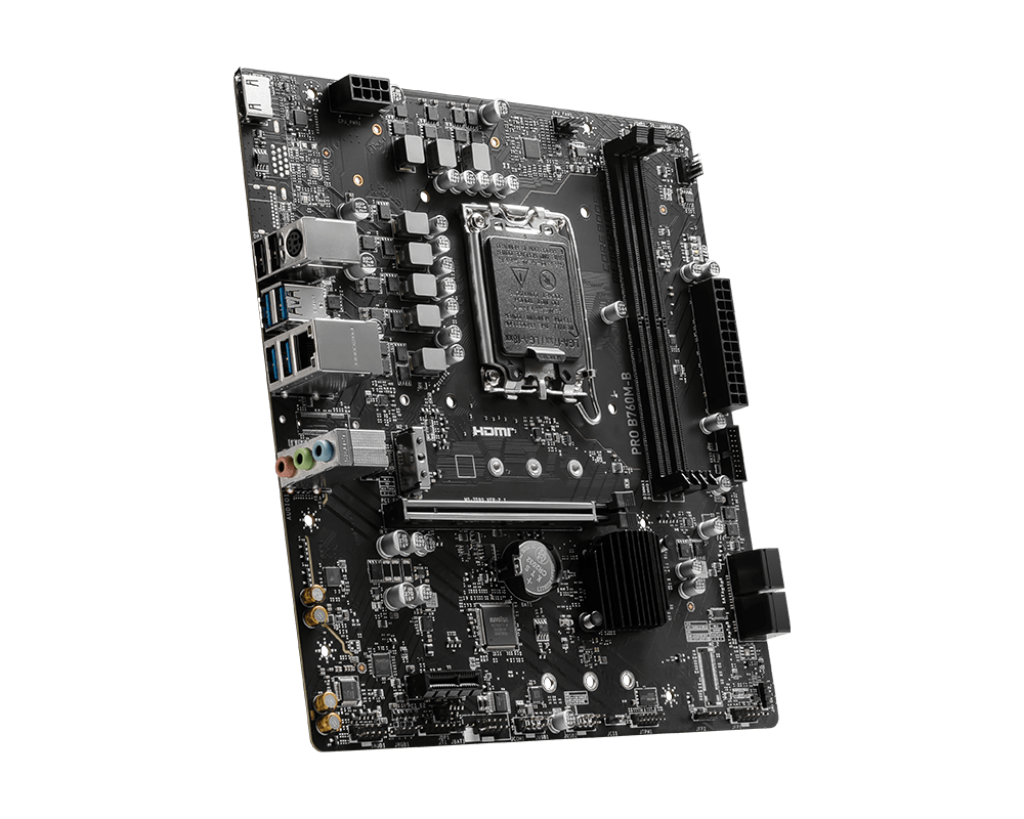

Specification Details Model MSI PRO B760M-B D4 Chipset Intel B760 CPU Socket LGA 1700 CPU Support 12th / 13th / 14th Gen Intel Core / Pentium / Celeron (depending on BIOS) Form Factor micro-ATX Memory Type DDR4 Memory Slots 4 × DDR4 DIMM Maximum Memory Up to 128 GB Memory Speed Support DDR4 (varies by CPU and memory kit) PCIe Slots 1 × PCIe x16 (PCIe 4.0) • 2 × PCIe x1 Storage Interfaces 4 × SATA 6 Gb/s USB Connectivity Multiple USB-A and USB-C ports (varies by rear / internal headers) Networking Realtek Gigabit LAN Audio Realtek ALC audio codec (High Definition 7.1-channel) Display Outputs Depends on CPU iGPU support (HDMI / DisplayPort on rear I/O) SATA Support RAID support (varies by model BIOS option) BIOS Click BIOS 5 (MSI UEFI) Additional Features MSI PRO Series stability and durability design, Core boost power delivery Expansion Slots Standard micro-ATX layout with adequate spacing for add-in cards Use Case Professional builds, productivity systems, office / home use, entry-level gaming
Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

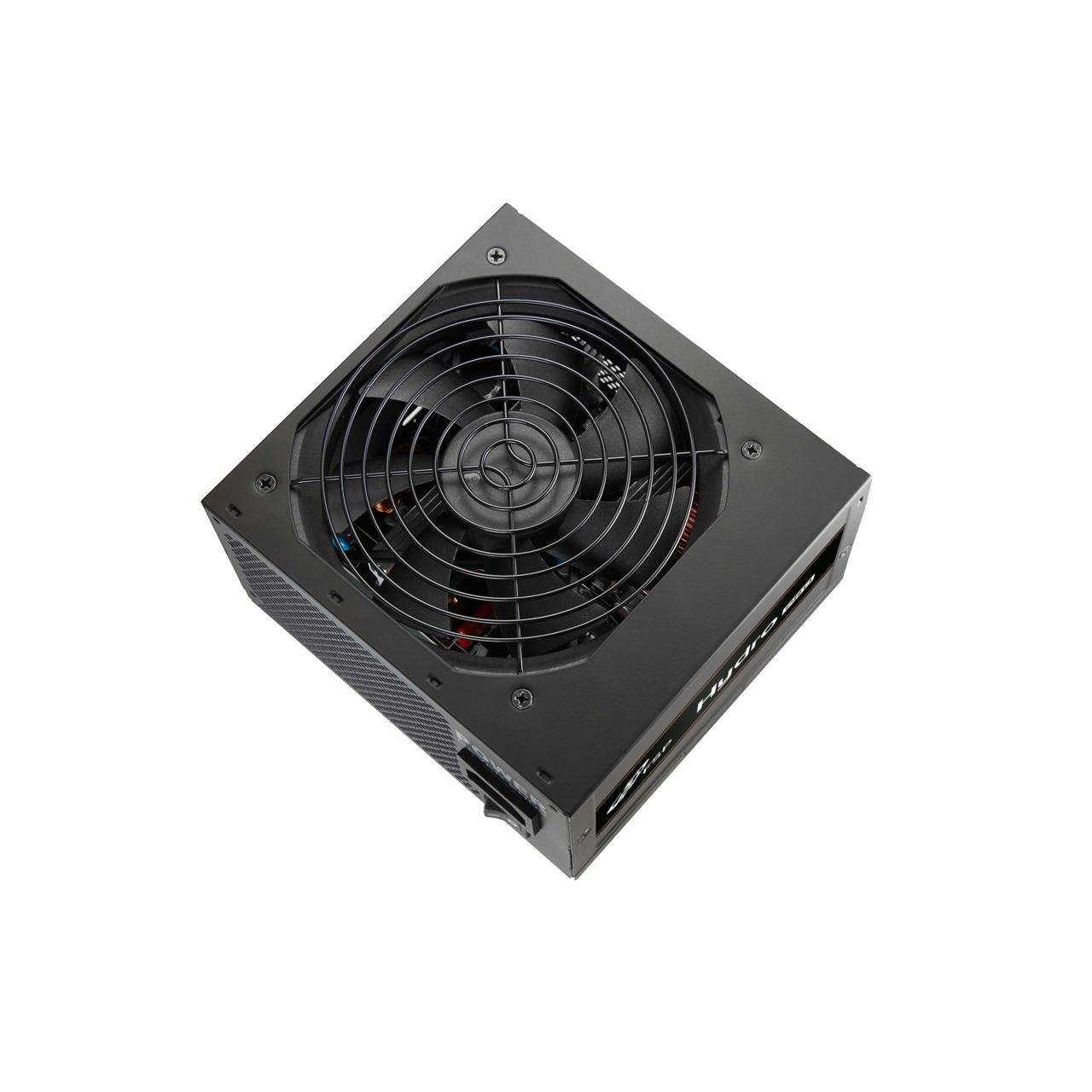

Complies with ATX12 v2.52 & EPS12 V2.92
Efficiency ≥ 88% at typical Load
Active PFC ≥ 0.9
Hold up time > 17ms at 80% Load
+5V & 3.3V DC to DC module design
+12V Single-Rail Design
120mm Silent & long life Fan
Complete Protections: OCP/OVP/OPP/SCP
Complies with ATX 12V v2.4 & EPS 12V v2.92
Meets 85% Efficiency
Active PFC, Power Factor ≧ 99%
+12V Single Rail Design
PCI-Express 6+2 Pin Graphic Card Connectors
SATA Array Cable
120mm Quiet Fan
Complete Protections: OCP, OVP, SCP
Meet ErP/EuP 2013 Standard
Latest Intel Platform Ready
Multiple Safety Approvals
Intel：LGA115X/1200/1700/1851/2011/2066
AMD：FM1/FM2/FM2+/AM2/AM2+/AM3/AM3+/AM4/AM5

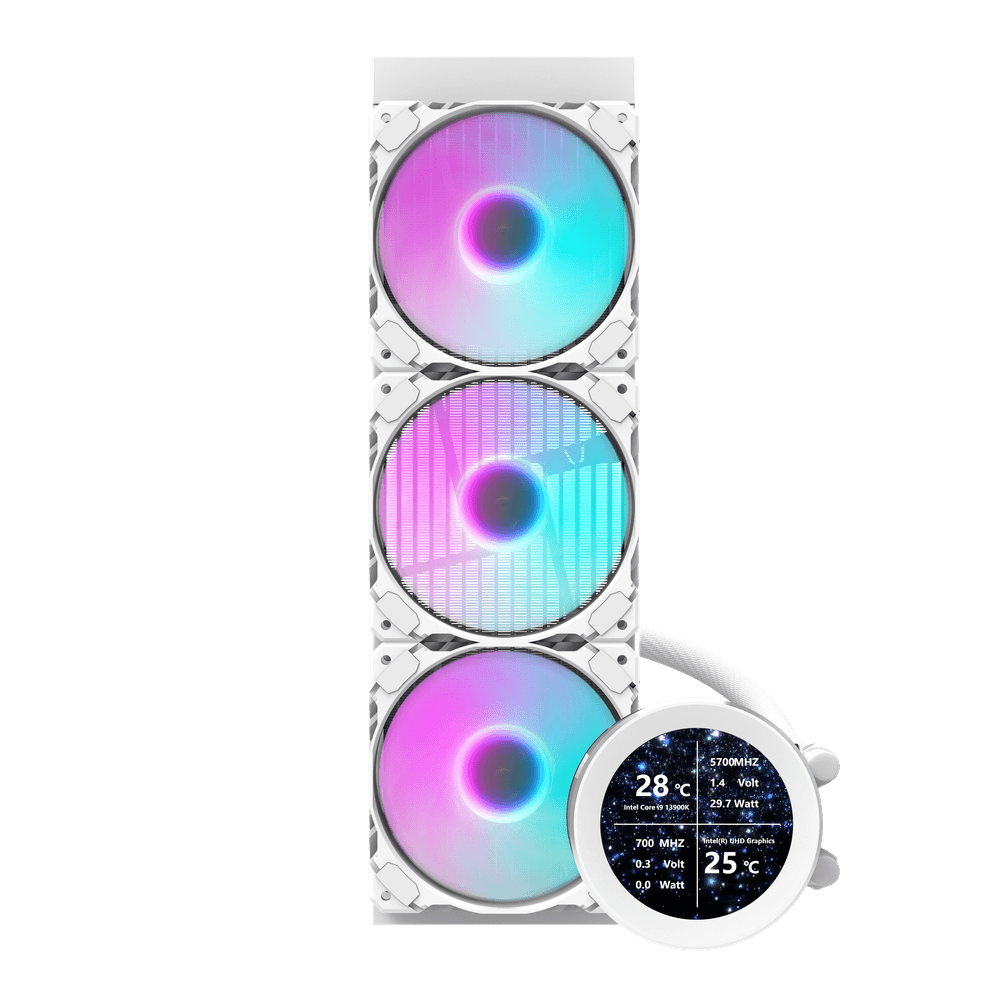

| Specification | Details |
|---|---|
| Radiator Size | 360 mm (approximately 397 × 120 × 27 mm) |
| Fan Size & Quantity | 3 × 120 mm fans (120 × 120 × 25 mm) |
| Fan Speed | 800 – 1,800 RPM ±10% |
| Airflow | 61.7 CFM |
| Noise Level | 30 dBA (typical load) |
| Pump Speed | 2,400 RPM ±10% |
| Display | 2.1-inch customizable IPS screen on pump head |
| Tube Length & Material | 450 mm dual-layer synthetic tubing (heat and pressure resistant) |
| Compatibility | Intel: LGA 1700/1200/115x • AMD: AM5/AM4/AM3 |
| Color/Finish | White edition |
| Software / Control | Smart control software for display, pump, and fan customization |
Technical Spec :
Heatsink Specifications:
Dimension: L120 mm x W46 mm x H151 mm
Heat pipes: 6mm heatpipe x 4 units
TL-P12W-S FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 2000 RPM±10% (MAX)
Noise Level: 29.8 dBA
Air Flow: 70.84 CFM (MAX)
Air Pressure: 2.63 mm H2O (MAX)
Connector: 4 Pin (PWM Fan connector)
ARGB Connector：3 PIN 5V
Bearing Type : S-FDB Bearing
