Spec Details Model Name O11 Vision Compact – White (O11VPX White) Case Type / Form Factor Mid-Tower / ATX compatible (supports ATX, Micro-ATX, Mini-ITX, and E-ATX up to 280 mm width) Dimensions (W × H × D) 287.5 mm × 446.4 mm × 447.5 mm Internal Volume 57.4 litres Materials Steel frame, tempered glass panels (4 mm clear side/front + 3 mm top), aluminum finishing Motherboard Support ATX, Micro-ATX, Mini-ITX, E-ATX (under 280 mm width), Back-Connect motherboard compatible GPU Clearance Up to 408 mm in length CPU Cooler Clearance Up to 167 mm in height PSU Support ATX form factor, depth up to 220 mm Fan Support Vision mode (glass top): up to 8 × 120 mm fans / Mesh mode (mesh top): up to 11 × 120 mm fans (or 140 mm options) Radiator Support Up to 360 mm radiators (top, side or bottom depending on configuration) Storage Drive Bays Behind MB tray: 2 × 2.5″ SSD / Drive cage: 2 × 3.5″ HDD (or 2.5″ SSD) Expansion Slots 6 + 1 (full height) Front I/O Ports 2 × USB 3.0 Type-A, 1 × USB 3.1 Type-C, 1 × Audio Jack, Power button with backlight Dust Filters Full-length magnetic bottom filter, slide-out design Colour / Finish White – clear tempered glass panels with silver aluminum finish
Spec Details Model Name O11 Vision Compact – Black (O11VPX Black) Case Type / Form Factor Mid-Tower / ATX compatible (supports ATX, Micro-ATX, Mini-ITX, and E-ATX up to 280 mm width) Dimensions (W × H × D) 287.5 mm × 446.4 mm × 447.5 mm (≈ 11.32″ × 17.57″ × 17.62″) Internal Volume 57.4 litres Materials Steel frame, tempered glass panels (4 mm tinted side/front + 3 mm top), aluminum finishing Motherboard Support ATX, Micro-ATX, Mini-ITX, E-ATX (under 280 mm width), Back-Connect motherboard compatible GPU Clearance Up to 408 mm in length CPU Cooler Clearance Up to 167 mm in height PSU Support ATX form factor, depth up to 220 mm Fan Support Vision mode (glass top): up to 8 × 120 mm fans / Mesh mode (mesh top): up to 11 × 120 mm fans (or 140 mm options) Radiator Support Up to 360 mm radiators (top, side or bottom depending on configuration) Storage Drive Bays Behind MB tray: 2 × 2.5″ SSD / Drive cage: 2 × 3.5″ HDD (or 2.5″ SSD) Expansion Slots 6 + 1 (full height) Front I/O Ports 2 × USB 3.0 Type-A, 1 × USB 3.1 Type-C, 1 × Audio Jack, Power button with backlight Dust Filters Full-length magnetic bottom filter, slide-out design Colour / Finish Black – tinted glass panels with brushed aluminum finish

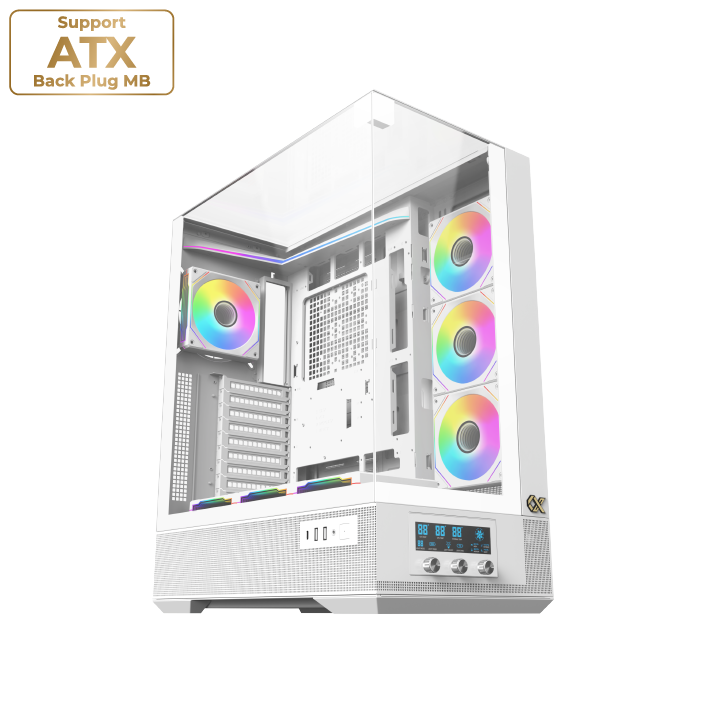

Specification Details Model Vision Pro (Arctic White) Dimensions (L × W × H) 450 × 258 × 533 mm Supported Motherboard Sizes E-ATX, ATX, Micro-ATX, Mini-ITX CPU Cooler Clearance Up to 180 mm GPU Clearance Up to 420 mm Power Supply Length Limitation Up to 220 mm Fan Support • Motherboard chamber: 120 mm × 4 or 140 mm × 3 • PSU shroud area: 120 mm × 3 • Rear: 120 mm × 1 or 140 mm × 1 • SSD/HDD bracket: 120 mm × 1 Radiator Support Up to 240 / 280 / 360 / 420 / 480 mm (with E-ATX width ≤ 290 mm) Drive Bays / Mounting Rear MB panel bracket: 3.5″ × 1 or 2.5″ × 2 Flip cover options: – Option A: 3.5″ × 3 or 3.5″ × 3 + 2.5″ × 1 or 3.5″ × 2 + 2.5″ × 2 – Option B: 3.5″ × 2 or 3.5″ × 1 + 2.5″ × 1 or 2.5″ × 2 Expansion Slots 9 standard slots (supports horizontal or vertical GPU installation) I/O Panel 2 × USB 3.0, 1 × USB Type-C, HD Audio Material / Finish Steel structure with 3 tempered glass side panels Colour Arctic White Additional Features Pre-installed PWM fans (800 – 2200 RPM) on rear & side PSU shroud panel Smart Fan Control LCD display with three knobs: – Left knob: RGB light control – Middle knob: short press for LED On/Off, long press for ARGB sync – Right knob: fan speed control (800 / 1200 / 1700 / 2200 RPM)

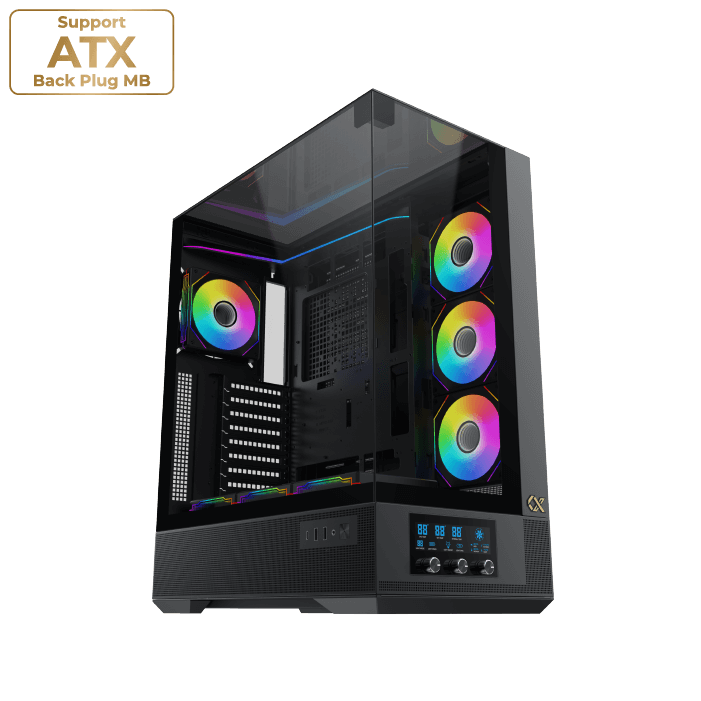

Specification Details Model Vision Pro (Black) Dimensions (L × W × H) 450 × 258 × 533 mm Supported Motherboard Sizes E-ATX, ATX, Micro-ATX, Mini-ITX CPU Cooler Clearance Up to 180 mm GPU Clearance Up to 420 mm Power Supply Length Limitation Up to 220 mm Fan Support • Motherboard chamber: 120 mm × 4 or 140 mm × 3 • PSU shroud area: 120 mm × 3 • Rear: 120 mm × 1 or 140 mm × 1 • SSD/HDD bracket: 120 mm × 1 Radiator Support Up to 240 / 280 / 360 / 420 / 480 mm (with E-ATX width ≤ 290 mm) Drive Bays / Mounting Rear MB panel bracket: 3.5″ × 1 or 2.5″ × 2 Flip cover options: – Option A: 3.5″ × 3 or 3.5″ × 3 + 2.5″ × 1 or 3.5″ × 2 + 2.5″ × 2 – Option B: 3.5″ × 2 or 3.5″ × 1 + 2.5″ × 1 or 2.5″ × 2 Expansion Slots 9 standard slots (supports horizontal or vertical GPU installation) I/O Panel 2 × USB 3.0, 1 × USB Type-C, HD Audio Material / Finish Steel structure with 3 tempered glass side panels Colour Black Additional Features Pre-installed PWM fans (800 – 2200 RPM) on rear & side PSU shroud panel Smart Fan Control LCD display with three knobs: – Left knob: RGB light control – Middle knob: short press for LED On/Off, long press for ARGB sync – Right knob: fan speed control (800 / 1200 / 1700 / 2200 RPM)

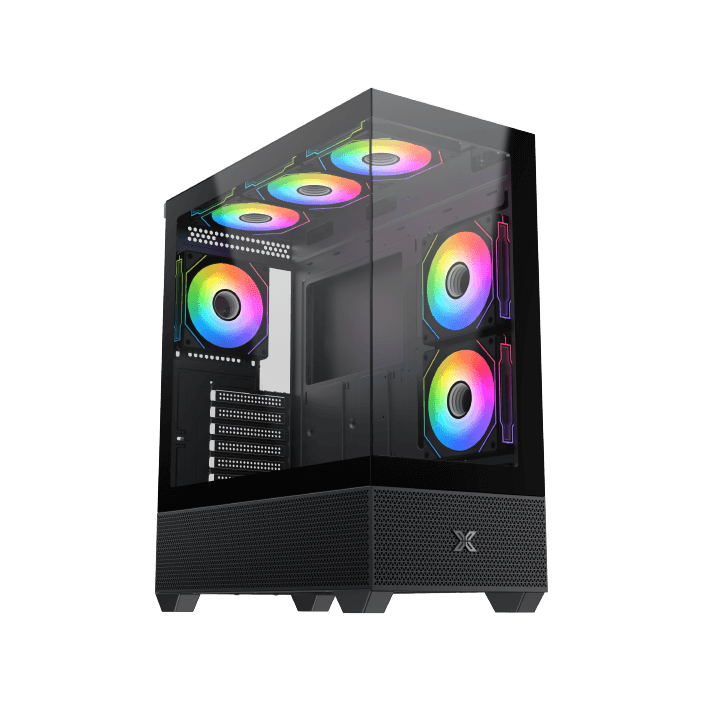

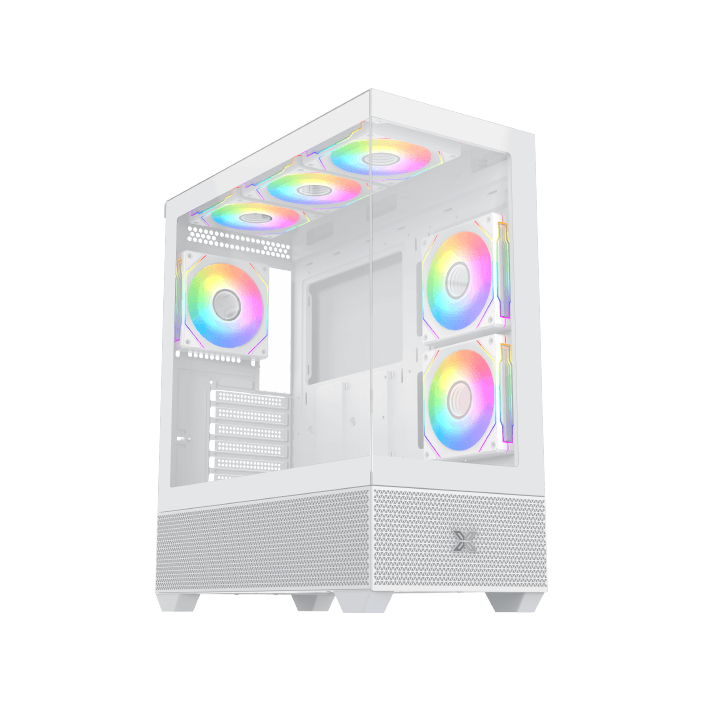

Attribute Details Product Name XIGMATEK Alphard Dimensions (L × W × H) 425 × 212 × 490 mm Material Steel + Tempered Glass panels Motherboard Support E-ATX / ATX / Micro-ATX / Mini-ITX Drive Bays HDD Cage (Top): 3.5″ ×1 HDD Cage (Bottom): 2.5″ ×1 Expansion Slots 7 standard PCI slots Fan Support Top: 3×120 mm or 2×140 mm Side (Motherboard area): 2×120 mm (when E-ATX width ≤ 280 mm) PSU Shroud: 3×120 mm Rear: 1×120 mm Radiator Support Top: 280/360 mm Rear: 120 mm CPU Cooler Clearance (Max Height) 165 mm GPU Length Limitation Up to 410 mm PSU Length Limitation Up to 200 mm I/O Panel (Front/Top) USB 3.0 ×1, USB 2.0 ×2, HD Audio jack Weight (approx.) ~5.8 kg
Attribute Details Product Name XIGMATEK Alphard Dimensions (L × W × H) 425 × 212 × 490 mm Material Steel + Tempered Glass panels Motherboard Support E-ATX / ATX / Micro-ATX / Mini-ITX Drive Bays HDD Cage (Top): 3.5″ ×1 HDD Cage (Bottom): 2.5″ ×1 Expansion Slots 7 standard PCI slots Fan Support Top: 3×120 mm or 2×140 mm Side (Motherboard area): 2×120 mm (when E-ATX width ≤ 280 mm) PSU Shroud: 3×120 mm Rear: 1×120 mm Radiator Support Top: 280/360 mm Rear: 120 mm CPU Cooler Clearance (Max Height) 165 mm GPU Length Limitation Up to 410 mm PSU Length Limitation Up to 200 mm I/O Panel (Front/Top) USB 3.0 ×1, USB 2.0 ×2, HD Audio jack Weight (approx.) ~5.8 kg

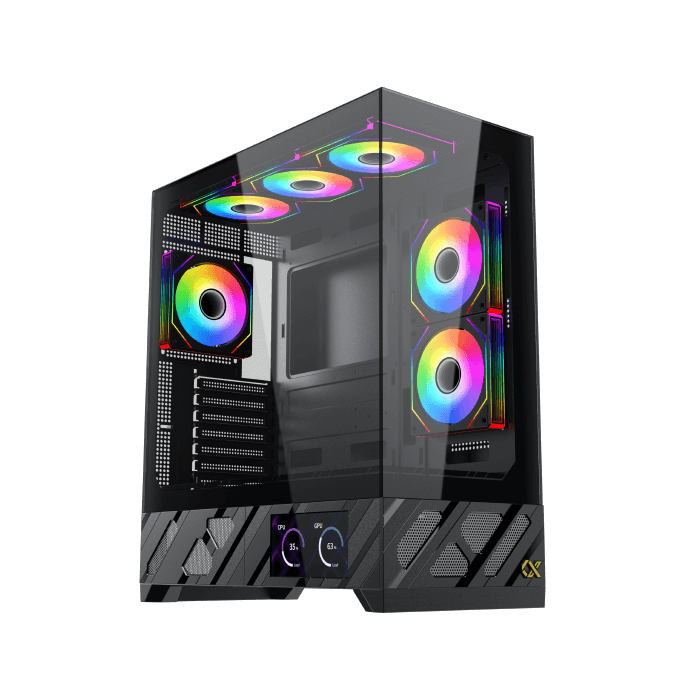

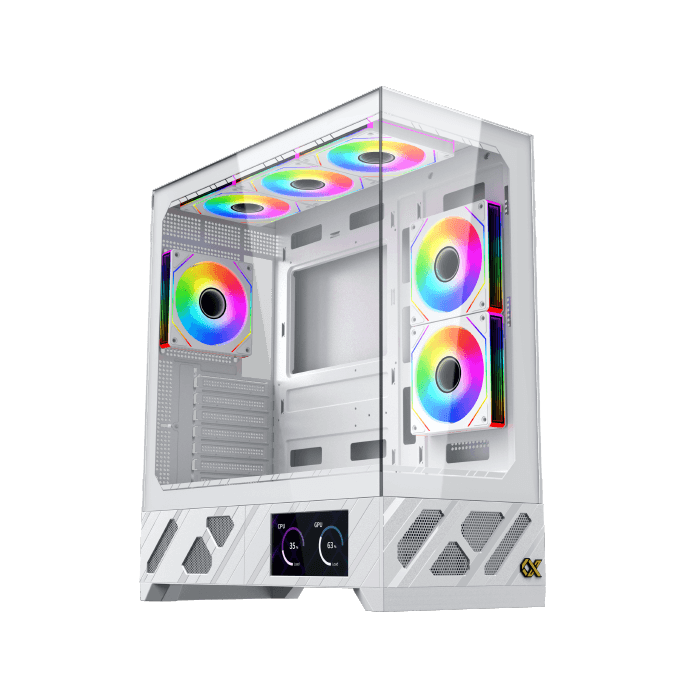

Attribute Details Product Name XIGMATEK Alphard Pro Dimensions (L × W × H) 435 × 215 × 495 mm Material Steel + Tempered Glass (front & side panels) Motherboard Support E-ATX (≤ 272 mm width if side fans installed), ATX, Micro-ATX, Mini-ITX Drive Bays Top HDD cage: 2.5″ & 3.5″ combo ×1 Bottom HDD cage: 3.5″ ×1 Fan Support Top: 3×120 mm or 2×140 mm Side: 2×120 mm (when E-ATX width ≤ 272 mm) Rear: 1×120 mm Radiator Support Top: 240/280/360 mm Side: 240 mm (with E-ATX width restriction) Rear: 120 mm CPU Cooler Clearance (Max Height) 165 mm GPU Length Limitation 410 mm (when side fans not installed) 280 mm (when side fans installed) PSU Length Limitation 220 mm Expansion Slots 7 standard PCI slots I/O Panel (Front/Top) USB 3.0 ×2, HD Audio jack, Power button, Reset button, LED switch Features • 6″ Smart/LCD panel (magnetically mountable front or side) • ARGB & PWM control box included • Top & bottom dust filters Weight (approx.) ~8.5 kg
Attribute Details Product Name XIGMATEK Alphard Pro Dimensions (L × W × H) 435 × 215 × 495 mm Material Steel + Tempered Glass (front & side panels) Motherboard Support E-ATX (≤ 272 mm width if side fans installed), ATX, Micro-ATX, Mini-ITX Drive Bays Top HDD cage: 2.5″ & 3.5″ combo ×1 Bottom HDD cage: 3.5″ ×1 Fan Support Top: 3×120 mm or 2×140 mm Side: 2×120 mm (when E-ATX width ≤ 272 mm) Rear: 1×120 mm Radiator Support Top: 240/280/360 mm Side: 240 mm (with E-ATX width restriction) Rear: 120 mm CPU Cooler Clearance (Max Height) 165 mm GPU Length Limitation 410 mm (when side fans not installed) 280 mm (when side fans installed) PSU Length Limitation 220 mm Expansion Slots 7 standard PCI slots I/O Panel (Front/Top) USB 3.0 ×2, HD Audio jack, Power button, Reset button, LED switch Features • 6″ Smart/LCD panel (magnetically mountable front or side) • ARGB & PWM control box included • Top & bottom dust filters Weight (approx.) ~8.5 kg
Blast Arctic
425x212x490mm (LxWxH)
E-ATX, ATX, Micro ATX, Mini ITX
HDD Cage(Top): 3.5” x1
HDD Cage(Bottom): 2.5” x1
Bottom Panel: 3.5” & 2.5” Combo x1
Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3
(E-ATX MB Width ≤28.5cm)
PSU Shroud: 120mm x2
Bottom: 120mm x1
(No 2.5” or 3.5” SSD/HDD)
Rear: 120mm x1
200mm
Steel
9 Standard Slots
Standard PS2
ATX PSU
USB 3.0 x 1
USB 2.0 x 2
HD Audio
Top: 280/360
MN Panel: 360
(E-ATX MB Width ≤28.5cm)
Rear: 120
165mm
285mm
(Fan on MB Panel)
410mm
(No Fan on MB Panel)
Blast
425x212x490mm (LxWxH)
E-ATX, ATX, Micro ATX, Mini ITX
HDD Cage(Top): 3.5” x1
HDD Cage(Bottom): 2.5” x1
Bottom Panel: 3.5” & 2.5” Combo x1
Top: 120mm x3 or 140mm x2
MB Panel: 120mm x3
(E-ATX MB Width ≤28.5cm)
PSU Shroud: 120mm x2
Bottom: 120mm x1
(No 2.5” or 3.5” SSD/HDD)
Rear: 120mm x1
200mm
Steel
9 Standard Slots
Standard PS2
ATX PSU
USB 3.0 x 1
USB 2.0 x 2
HD Audio
Top: 280/360
MN Panel: 360
(E-ATX MB Width ≤28.5cm)
Rear: 120
165mm
285mm
(Fan on MB Panel)
410mm
(No Fan on MB Panel)
Category Specification Product Name XIGMATEK CUBI II Case Type / Design Mid-tower cube-style case with 3 tempered glass panels Material Steel chassis + tempered glass panels Dimensions (L × W × H) 431 × 277 × 431 mm Motherboard Support E-ATX, ATX (with back-plug support), Micro-ATX (with back-plug support), Mini-ITX CPU Cooler Clearance Up to 165 mm GPU Length Clearance Up to 370 mm PSU Length Clearance Up to 200 mm Expansion / PCI Slots 7 standard slots, supports vertical GPU installation Drive Bays / Storage 2 × 3.5″ HDD, 3 × 2.5″ SSD Fan Support Top: 3 × 120 mm or 2 × 140 mmSide (Motherboard): 3 × 120 mmBottom: 3 × 120 mm or 2 × 140 mmRear: 1 × 120 mmTotal: Up to 10 fans Radiator Support Top: 280 / 360 mmSide: 360 mmBottom: 360 mm (when using Micro-ATX motherboard) Front / Top I/O Ports 2 × USB 3.0, 1 × USB Type-C, HD Audio, Power, Reset Cooling / Fan Configuration (Default) Comes with 6 or 7 pre-installed ARGB fans (varies by version) Special Features 3-sided tempered glass, vertical GPU support, full ARGB lighting system
Category Specification Product Name XIGMATEK CUBI II Case Type / Design Mid-tower cube-style case with 3 tempered glass panels Material Steel chassis + tempered glass panels Dimensions (L × W × H) 431 × 277 × 431 mm Motherboard Support E-ATX, ATX (with back-plug support), Micro-ATX (with back-plug support), Mini-ITX CPU Cooler Clearance Up to 165 mm GPU Length Clearance Up to 370 mm PSU Length Clearance Up to 200 mm Expansion / PCI Slots 7 standard slots, supports vertical GPU installation Drive Bays / Storage 2 × 3.5″ HDD, 3 × 2.5″ SSD Fan Support Top: 3 × 120 mm or 2 × 140 mmSide (Motherboard): 3 × 120 mmBottom: 3 × 120 mm or 2 × 140 mmRear: 1 × 120 mmTotal: Up to 10 fans Radiator Support Top: 280 / 360 mmSide: 360 mmBottom: 360 mm (when using Micro-ATX motherboard) Front / Top I/O Ports 2 × USB 3.0, 1 × USB Type-C, HD Audio, Power, Reset Cooling / Fan Configuration (Default) Comes with 6 or 7 pre-installed ARGB fans (varies by version) Special Features 3-sided tempered glass, vertical GPU support, full ARGB lighting system
