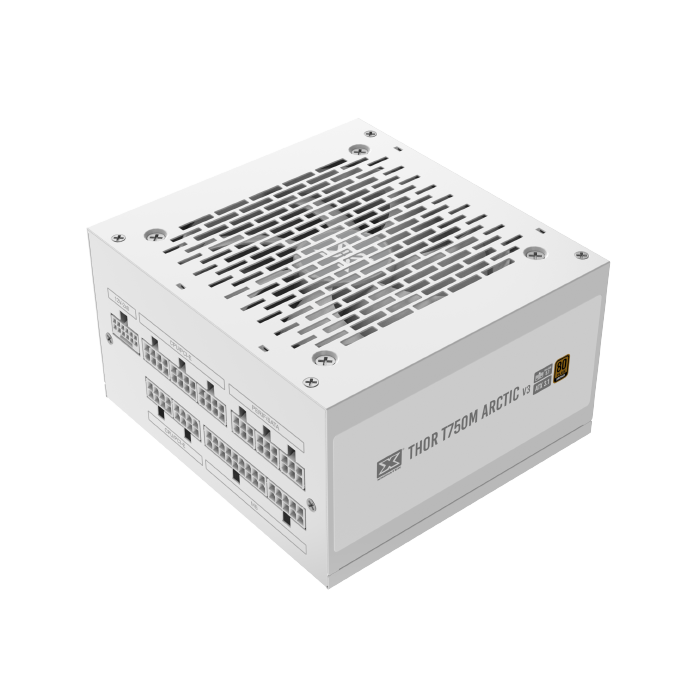

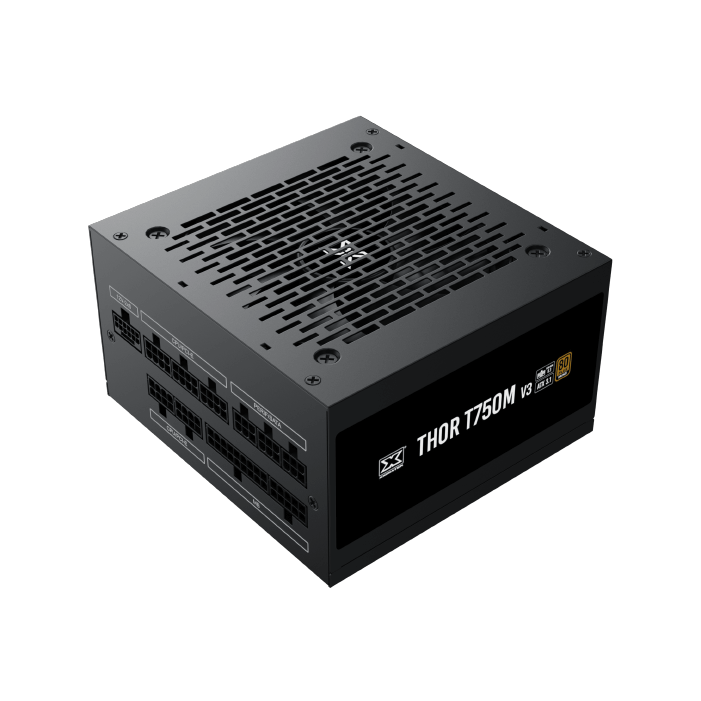

Specification Details Rated Power Output 750 W Efficiency Rating 80 PLUS Bronze Form Factor / Standard ATX 3.1 / PCI-E 5.1 ready Modularity Fully modular cabling (flat black cables) +12 V Rail Design Single +12 V DC rail Cooling Fan 120 mm silent cooling fan Cooling Control Intelligent thermal-fan RPM control based on load Input Voltage Range 100–240 V AC (auto switching) Main Connectors 1 × 24-pin ATX CPU Connectors 2 × 4+4-pin CPU/EPS GPU / PCIe Connectors 1 × PCI-E 5.1 12V-2×6 plug (for new GPUs) + 4 × PCI-E 6+2-pin Peripheral Connectors Multiple SATA and Molex connectors for drives/peripherals Protection Features OPP (over-power), OVP (over-voltage), UVP (under-voltage), SCP (short-circuit protection) Cooling / Noise Quiet 120 mm fan; designed for stable and silent operation under load Suitability Mid-range to high-end gaming / workstation PCs, modern GPUs requiring PCIe 5.1
Specification Details Rated Power Output 750 W Efficiency Rating 80 PLUS Bronze Form Factor / Standard ATX 3.1 / PCI-E 5.1 ready Modularity Fully modular cabling (flat black cables) +12 V Rail Design Single +12 V DC rail Cooling Fan 120 mm silent cooling fan Cooling Control Intelligent thermal-fan RPM control based on load Input Voltage Range 100–240 V AC (auto switching) Main Connectors 1 × 24-pin ATX CPU Connectors 2 × 4+4-pin CPU/EPS GPU / PCIe Connectors 1 × PCI-E 5.1 12V-2×6 plug (for new GPUs) + 4 × PCI-E 6+2-pin Peripheral Connectors Multiple SATA and Molex connectors for drives/peripherals Protection Features OPP (over-power), OVP (over-voltage), UVP (under-voltage), SCP (short-circuit protection) Cooling / Noise Quiet 120 mm fan; designed for stable and silent operation under load Suitability Mid-range to high-end gaming / workstation PCs, modern GPUs requiring PCIe 5.1
Specification Details Total Power Output 1000 W Efficiency Rating 80 PLUS Gold Certified PSU Type ATX 3.0 / ATX 3.1 compatible Modular Design Fully modular cabling system Fan Type 120 mm fluid dynamic bearing fan Input Voltage 100 – 240 V Cooling Features Smart fan curve with low noise operation Hold-Up Time ≥ 17 ms (at full load) Protections OPP, OVP, UVP, SCP, OTP, OCP Connectors 1 × 24-pin ATX, 2 × 8-pin EPS, 6 × PCIe 6+2, 12VHPWR cable (ATX 3.0), SATA and Molex cables Dimensions 150 × 140 × 86 mm Components 100% Japanese capacitors Certification Cybenetics Gold-rated efficiency and low noise Color Black Form Factor Standard ATX Warranty 10 years (varies by region)

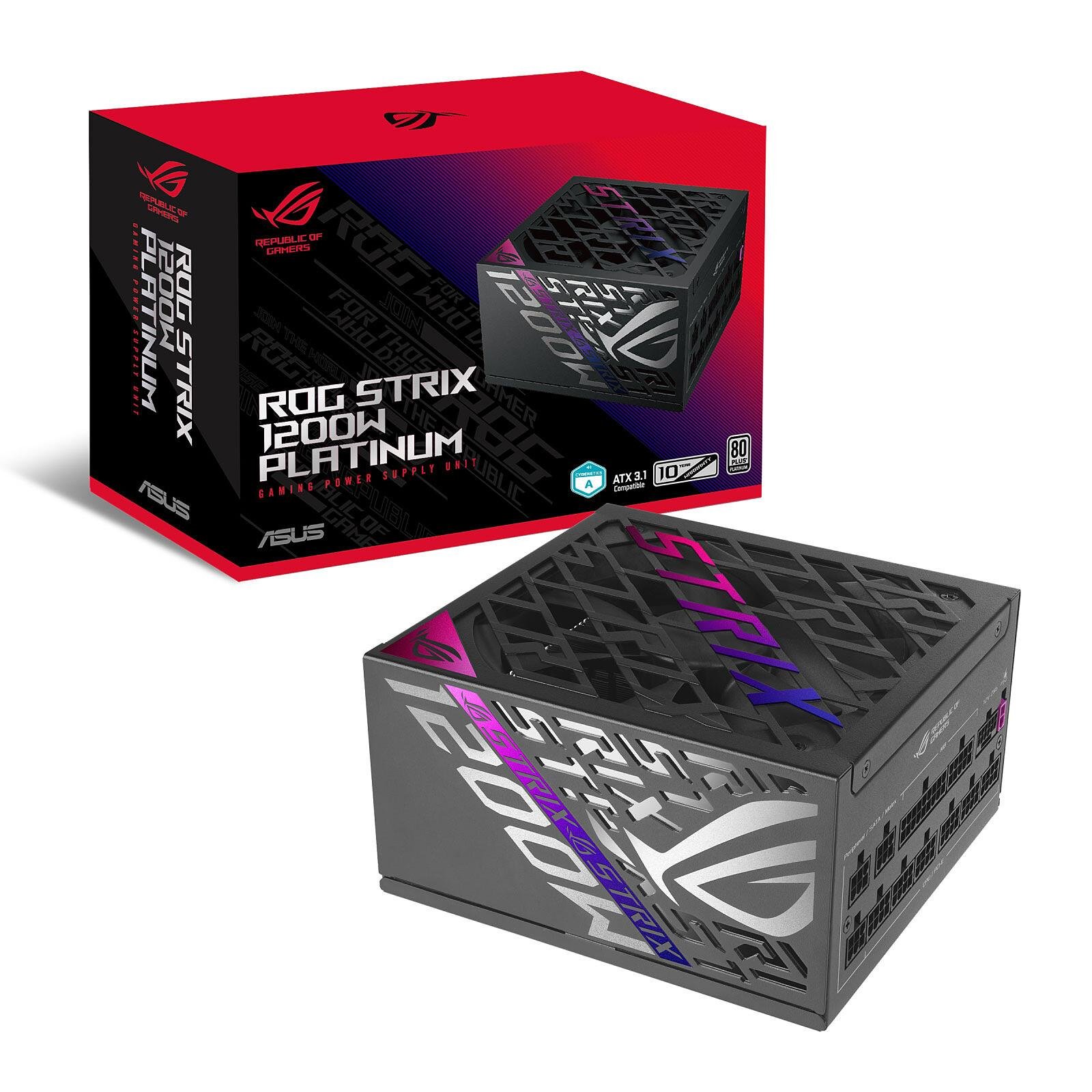

Specification Details Model Name ASUS ROG STRIX 1200W Platinum Wattage 1200 W Certification 80 PLUS Platinum ATX Standard ATX 3.1 compatible PCIe Connector Support 12V‑2×6 (16‑pin / 12VHPWR) for next-gen GPUs +12 V Rail(s) Single rail (~100 A on +12V for full 1200 W load) Input Voltage 100‑240 V AC, 50/60 Hz Dimensions (W × H × D) 150 mm × 86 mm × 160 mm Cooling / Fan 135 mm fan, dual-ball bearings, 0 dB mode under light load Connectors (modular) 1× 20+4 pin MB, 2× 4+4 pin CPU/EPS, 1× 16-pin PCIe, 4× 6+2 pin PCIe, 6× SATA, 3× Molex/peripheral Protection Features OPP, OVP, UVP, OCP, SCP, OTP Warranty 10 years Efficiency / Noise High efficiency due to GaN MOSFETs, quiet operation

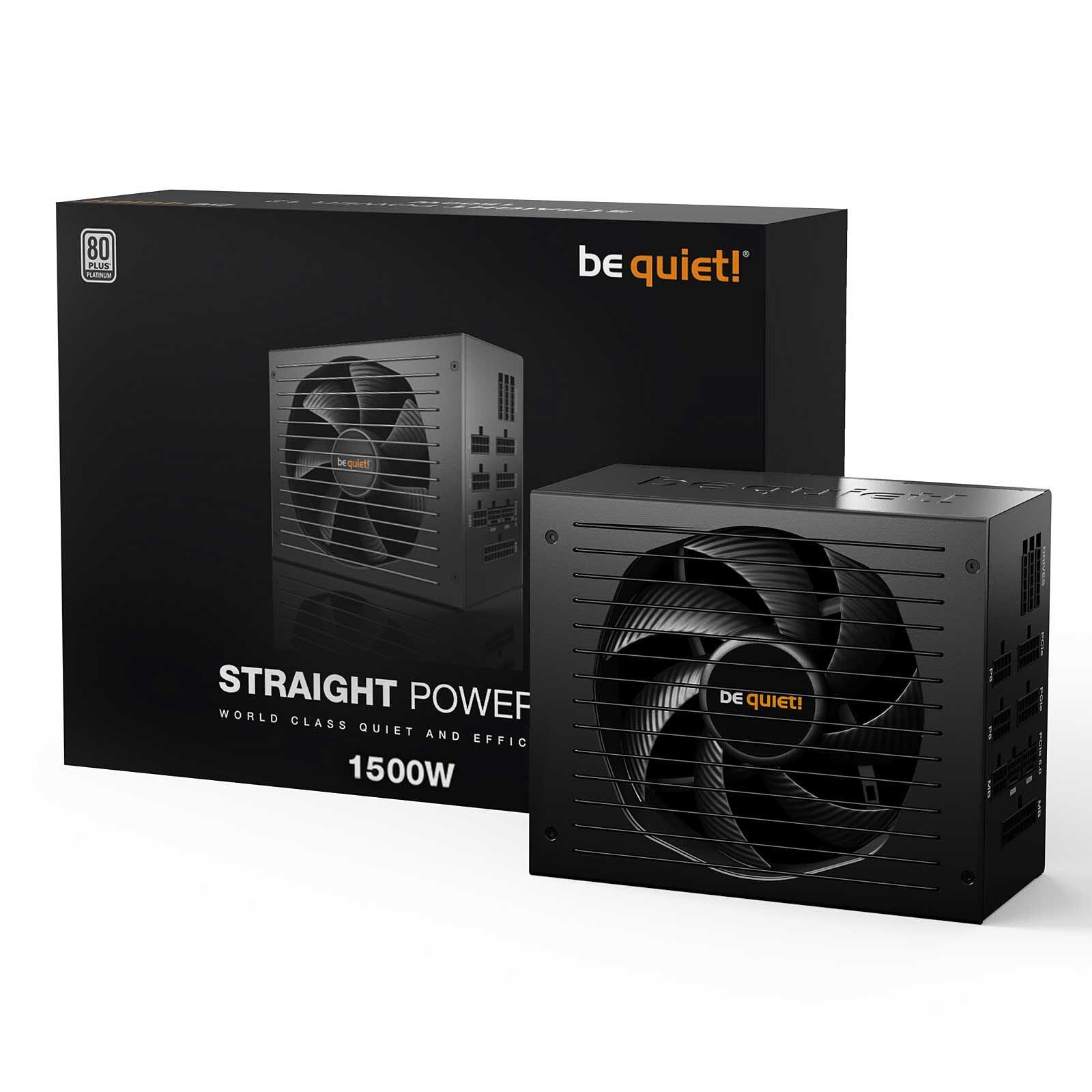

Category Specification Model be quiet! Straight Power 12 1500W Form Factor ATX 3.0, Fully Modular Power Output 1500W Continuous Power Efficiency 80 PLUS Platinum Certified (up to 93.9% efficiency) Input Voltage 100 – 240V AC Rails Single 12V rail 12V Rail Output Up to 1500W / 125A Connectors • 1 × 24-pin ATX • 2 × 8-pin EPS (CPU) • 8 × PCIe 6+2-pin • 3 × PCIe 12VHPWR (12+4-pin, up to 600W each) • 16 × SATA • 5 × Molex • 1 × Floppy adapter Cable Type Fully Modular, Sleeved / Flat cables Fan Silent Wings 135mm fluid-dynamic bearing fan Cooling / Acoustic Design Optimized airflow, funnel-shaped fan opening for reduced turbulence Noise Level Virtually inaudible operation under low/medium load Protections OCP (Overcurrent), OVP (Overvoltage), UVP (Undervoltage), SCP (Short circuit), OTP (Overtemperature), OPP (Overpower), SIP (Surge & Inrush) Compliance ATX 3.0 & PCIe 5.0 ready Dimensions (L × W × H) 180 × 150 × 86 mm Warranty 10 Years
Complies with ATX12 v2.52 & EPS12 V2.92
Efficiency ≥ 88% at typical Load
Active PFC ≥ 0.9
Hold up time > 17ms at 80% Load
+5V & 3.3V DC to DC module design
+12V Single-Rail Design
120mm Silent & long life Fan
Complete Protections: OCP/OVP/OPP/SCP
Complies with ATX 12V v2.4 & EPS 12V v2.92
Meets 85% Efficiency
Active PFC, Power Factor ≧ 99%
+12V Single Rail Design
PCI-Express 6+2 Pin Graphic Card Connectors
SATA Array Cable
120mm Quiet Fan
Complete Protections: OCP, OVP, SCP
Meet ErP/EuP 2013 Standard
Latest Intel Platform Ready
Multiple Safety Approvals

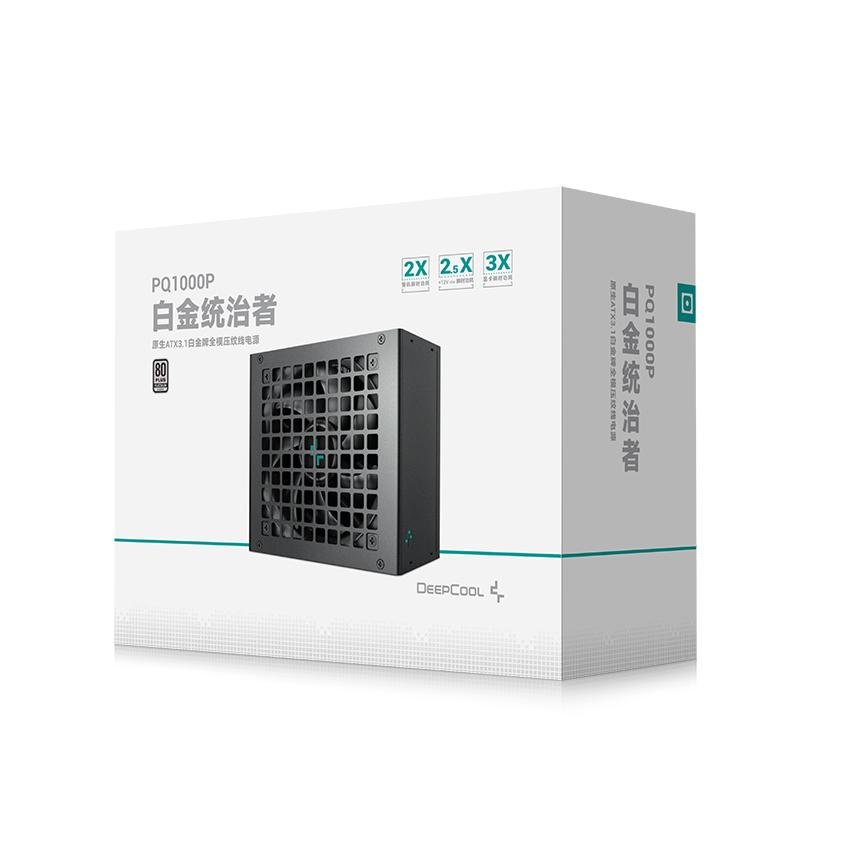

Category Specification / Description Model Name DeepCool PQ1000P Form Factor ATX 12V V3.1 PCIe Standard PCIe 5.1 compliant with 12V-2×6 (Next-Gen 12VHPWR) connector Power Output 1000 W (Continuous) Efficiency Certification 80 PLUS Platinum, Cybenetics Platinum Efficiency (Typical Load) Up to 92 % (at 50 % load) Input Voltage Range 100 – 240 V AC Input Current 6 – 12 A Input Frequency 47 – 63 Hz Active PFC Yes, > 0.9 typical Topology Full Bridge + LLC Resonant Converter + DC-to-DC Capacitors 100 % Japanese electrolytic capacitors (105 °C rated) Fan Type 120 mm FDB (Fluid Dynamic Bearing) Fan Mode Semi-fanless / Zero RPM mode under low load MTBF ≥ 100,000 hours Hold-up Time ≥ 16 ms (at full load) Power Good Signal 100 – 150 ms Operating Temperature 0 °C – 50 °C Dimensions (L × W × H) 160 × 150 × 86 mm Weight ≈ 2.0 kg Main Output Rails Single +12 V rail, 83.3 A (max 1000 W) +3.3 V / +5 V Combined Power 120 W max +5VSB Output 15 W max Protections OCP, OVP, SCP, UVP, OPP, OTP, NLO, SIP Modularity Fully Modular Cables Main Connectors – 1 × 24-pin ATX main power – 2 × 8-pin (4+4) EPS CPU –

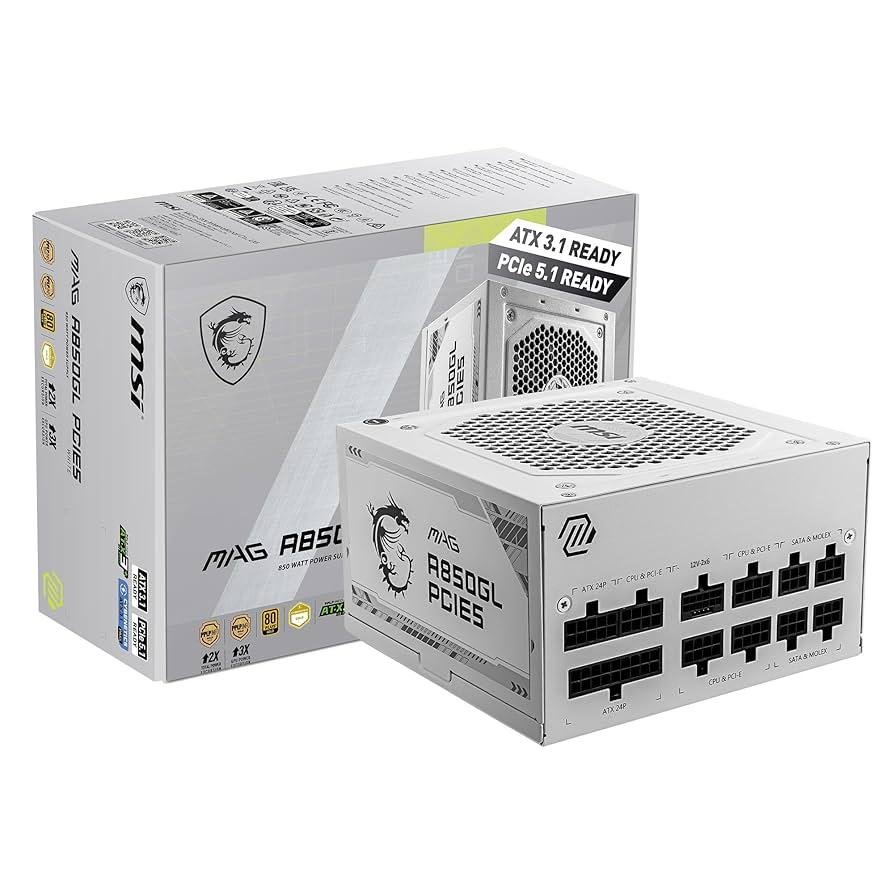

Specification Details Wattage 850W Efficiency 80 PLUS Gold Modular Fully modular (flat cables) Form Factor ATX 3.0 PCIe Support Native PCIe 5.0 16-pin connector CPU Connectors 2 × 4+4-pin EPS GPU Connectors 4 × PCIe 6+2-pin SATA Connectors 8 × SATA 15-pin Molex Connectors 4 × 4-pin Molex FDD Connector 1 × 4-pin Cooling 120mm FDB fan (500–1800 RPM, 19.79–71.27 CFM) Protection Features OCP, OVP, OPP, OTP, SCP, UVP Dimensions 140 × 150 × 86 mm Warranty 10 years
