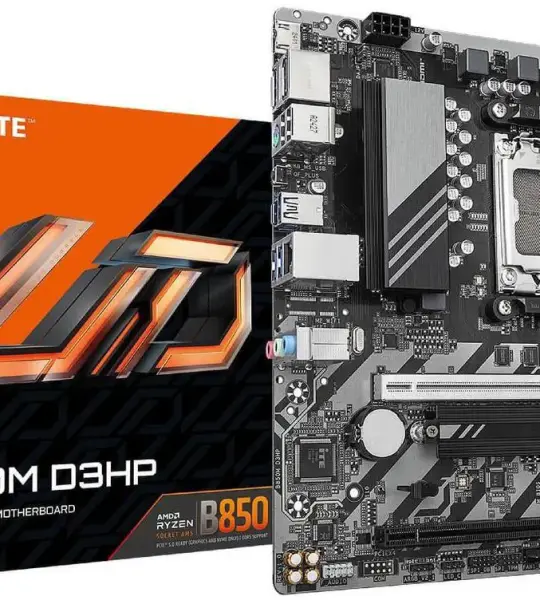

B850M GIGABYTE D3HP

B850M GIGABYTE D3HP

ع.د230,000

  • CPU:
    AMD Socket AM5, support for:
    AMD Ryzen™ 9000 Series Processors/
    AMD Ryzen™ 8000 Series Processors/
    AMD Ryzen™ 7000 Series Processors
    (Go to GIGABYTE’s website for the latest CPU support list.)
  • Chipset: AMD B850
  • Memory:
    Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
  • Onboard Graphics:

    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support for native HDMI 2.1 TMDS compatible ports.



    – 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version.

    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time

  • Audio:

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



  • LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Expansion Slots:

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.



    Chipset:
    – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

  • Storage Interface:

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs



    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB:
    CPU:
    – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    – 1 x USB 3.2 Gen 1 port on the back panel
    – 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    – 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors:
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    1 x system fan header
    1 x system fan/water cooling pump header
    2 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x reset jumper
    1 x Clear CMOS jumper
  • Back Panel Connectors:

    1 x HDMI port (Note)
    2 x DisplayPorts (Note)
    1 x PS/2 keyboard/mouse port
    1 x Q-Flash Plus button
    1 x USB Type-C® port, with USB 3.2 Gen 1 support
    3 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks



    (Note) Actual support may vary by CPU.

  • I/O Controller: iTE® I/O Controller Chip
  • H/W Monitoring:

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.



  • BIOS:
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features:

    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.



    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup

  • Bundled Software:
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System:
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

متاح





يشارك:

أضف تقييمك

لن يتم نشر عنوان بريدك الإلكتروني. الحقول المطلوبة مشار إليها بـ *

يرجى تسجيل الدخول لكتابة تقييم!

رفع الصور

يبدو أنه لا توجد تقييمات حتى الآن.

منتجات ذات صله

New

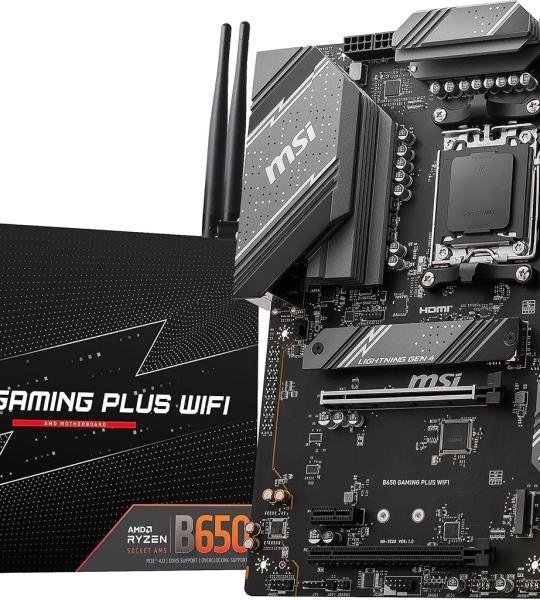

B650 MSI GAMING PLUS WIFI
B650 MSI GAMING PLUS WIFI
ع.د265,000
(0)

FeatureDetails
Chipset / SocketAMD B650 / AM5 — supports Ryzen 7000 / 8000 / 9000 series CPUs
Form FactorATX (305 × 244 mm)
Memory Support4× DDR5 DIMM slots, up to 192 GB, supports DDR5 up to 7200+ MHz (OC) with AMD EXPO
Power Delivery12+2+1 digital phases (Core/SOC/MISC) with MSI Core Boost design
Expansion / PCIe Slots2× PCIe 4.0 ×16 (CPU-driven x16/x4), 1× PCIe 4.0 ×16 (×4 lanes from chipset), 1× PCIe 3.0 ×1 slot
Storage2× M.2 PCIe 4.0 x4 slots, 4× SATA 6 Gb/s ports; RAID 0/1 support for SATA and M.2
NetworkingRealtek 8125BG 2.5 Gb Ethernet; onboard Wi‑Fi 6E & Bluetooth 5.3 module in M.2 Key‑E slot
USB ConnectivityRear: USB 3.2 Gen2×2 (Type‑C, 20 Gbps), 3× USB 3.2 Gen2, 4× USB 3.2 Gen1; internal headers for USB 3.2/USB 2.0, and front Type‑C
Video OutputsHDMI 2.1, DisplayPort 1.4 (requires compatible CPU iGPU)
AudioRealtek ALC897 7.1-channel HD Audio codec, shielded design
Cooling & Design FeaturesExtended heatsink, M.2 Shield Frozr, FROZR AI Cooling, EZ Debug LEDs, Flash BIOS button, 6‑layer PCB with thick copper
Software & UtilitiesMSI FROZR AI cooling tech, Armory CRATE utilities, BIOS Flashback, Core Boost power tuning
Warranty3 years (region dependent)

New

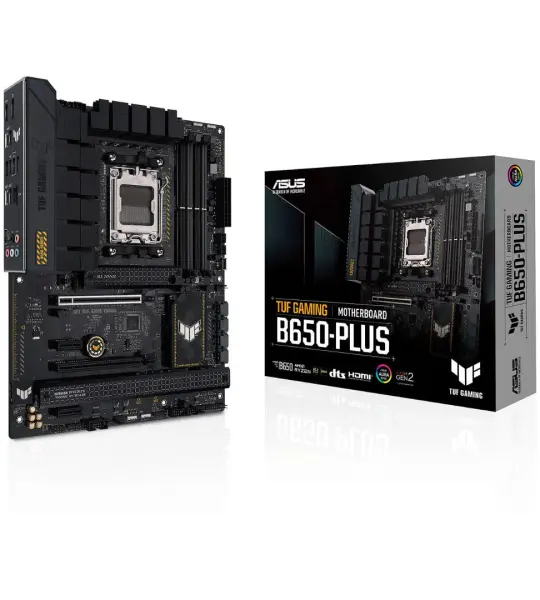

B650 ASUS TUF PLUS
B650 ASUS TUF PLUS
ع.د275,000
(0)

FeatureDetails
ModelASUS TUF Gaming B650‑Plus (pangoly.com)
Chipset / SocketAMD B650 / AM5 – supports Ryzen 7000 / 8000 / 9000 series CPUs
Form FactorATX (305 × 244 mm)
Memory Support4× DDR5 DIMMs, up to 128 GB; supports DDR5‑7600+ OC via EXPO profiles
VRM / Power Design12+2 power stages (~60 A each) with durable TUF components
Expansion Slots1× PCIe 4.0 ×16 (reinforced), 1× PCIe 4.0 ×16 (×4), 2× PCIe 4.0 ×1
Storage Options3× M.2 (1× PCIe 5.0 ×4, 2× PCIe 4.0 ×4), 4× SATA 6 Gb/s
NetworkingRealtek 2.5 Gb Ethernet with TUF LANGuard
USB ConnectivityRear I/O: 1× USB 3.2 Gen 2×2 Type‑C, 3× USB 3.2 Gen 2, 4× USB 2.0
Video OutputsHDMI 2.1 and DisplayPort 1.4 (if using Ryzen with integrated graphics)
Audio CodecRealtek ALC S1200A 7.1-channel HD Audio with shielding and premium capacitors
Other FeaturesAura Sync RGB header, BIOS FlashBack button, M.2 heatsinks, Pre-installed I/O shield
Software & UtilitiesArmoury Crate, Fan Xpert 2+, Q-Latch M.2, Q-LED debug lights
Warranty3 years (region-dependent)

New
X670 GIGABYTE GAMING X V2 WIFI
X670 GIGABYTE GAMING X V2 WIFI
ع.د350,000
(0)

FeatureDetails
Chipset / SocketAMD X670 / AM5 (Wise-Tech)
CPU SupportAMD Ryzen 7000 / 8000 Series (Midas Computer Center, Wise-Tech)
Power DeliveryTwin 16 + 2 + 2 digital VRM phases (Midas Computer Center, EliteHubs)
MemoryDDR5 up to 8000 MHz (OC), dual-channel, 4 DIMM slots, up to 128 GB / 192 GB (varies)
Storage1× PCIe 5.0 ×4 M.2, 3× PCIe 4.0 ×4 M.2, 4× SATA III
Graphics / PCIe1× PCIe 4.0 ×16 (×16), plus additional PCIe x16 slots (×4 / ×2 lanes)
NetworkingWi‑Fi 6E (AMD RZ616 / MT7922A22M), Bluetooth 5.2, up to ~2.4 Gbps; Realtek 2.5 GbE LAN
USB ConnectivityBack: USB 3.2 Gen1 ×6, USB 3.2 Gen2 ×2, USB‑C Gen2×2 ×1; Internal headers include USB‑C Gen2×2 and USB Gen1/2.0
AudioRealtek HD Audio codec, 7.1‑channel support
Cooling & ThermalMega‑heatpipe VRM heatsinks, M.2 Thermal Guard, Smart Fan 6 with hybrid fan headers & fan stop feature
BIOS FeaturesQ‑Flash Plus (BIOS update without CPU/DRAM/GPU), EZ‑Latch slots & M.2, Smart Backup support
ExtrasHDMI 2.1 port, Q‑Flash Plus button, bundled Norton Internet Security, TPM header, ECC unsupported
Form FactorATX (305 × 244 mm)
WarrantyTypically 1 year (region‑dependent)

New

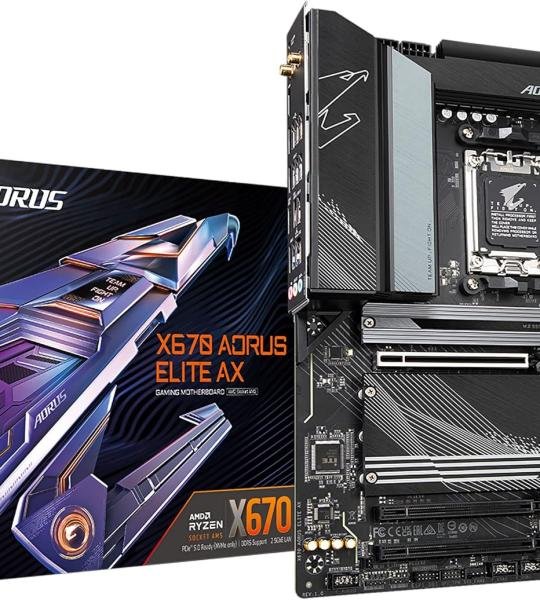

X670 Aorus Elite AX
