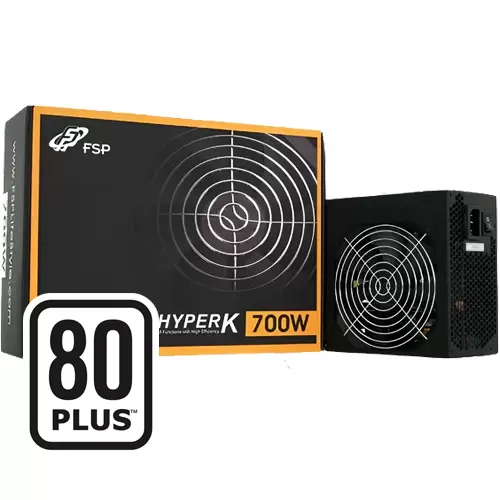

Complies with ATX 12V v2.4 & EPS 12V v2.92
Meets 85% Efficiency
Active PFC, Power Factor ≧ 99%
+12V Single Rail Design
PCI-Express 6+2 Pin Graphic Card Connectors
SATA Array Cable
120mm Quiet Fan
Complete Protections: OCP, OVP, SCP
Meet ErP/EuP 2013 Standard
Latest Intel Platform Ready
Multiple Safety Approvals
Intel：LGA115X/1200/1700/1851/2011/2066
AMD：FM1/FM2/FM2+/AM2/AM2+/AM3/AM3+/AM4/AM5
Intel：LGA115X/1200/1700/1851/2011/2066
AMD：FM1/FM2/FM2+/AM2/AM2+/AM3/AM3+/AM4/AM5

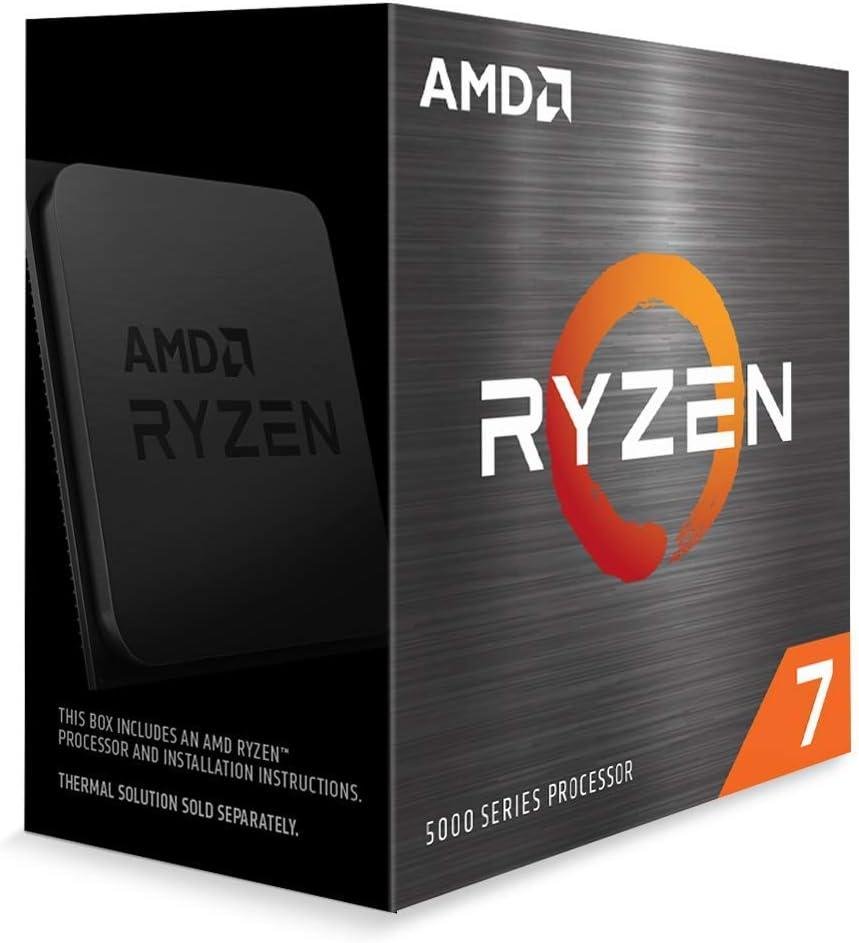

Name
AMD Ryzen™ 7 5800X
Family
Ryzen
Series
Ryzen 5000 Series
Form Factor
Desktops , Boxed Processor
Former Codename
Vermeer
# of CPU Cores
8
# of Threads
16
Max. Boost Clock
Up to 4.7 GHz
Base Clock
3.8 GHz
L2 Cache
4 MB
L3 Cache
32 MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM4
Thermal Solution (PIB)
Not Included
Recommended Cooler
Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
90°C
Launch Date
11/5/2020
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

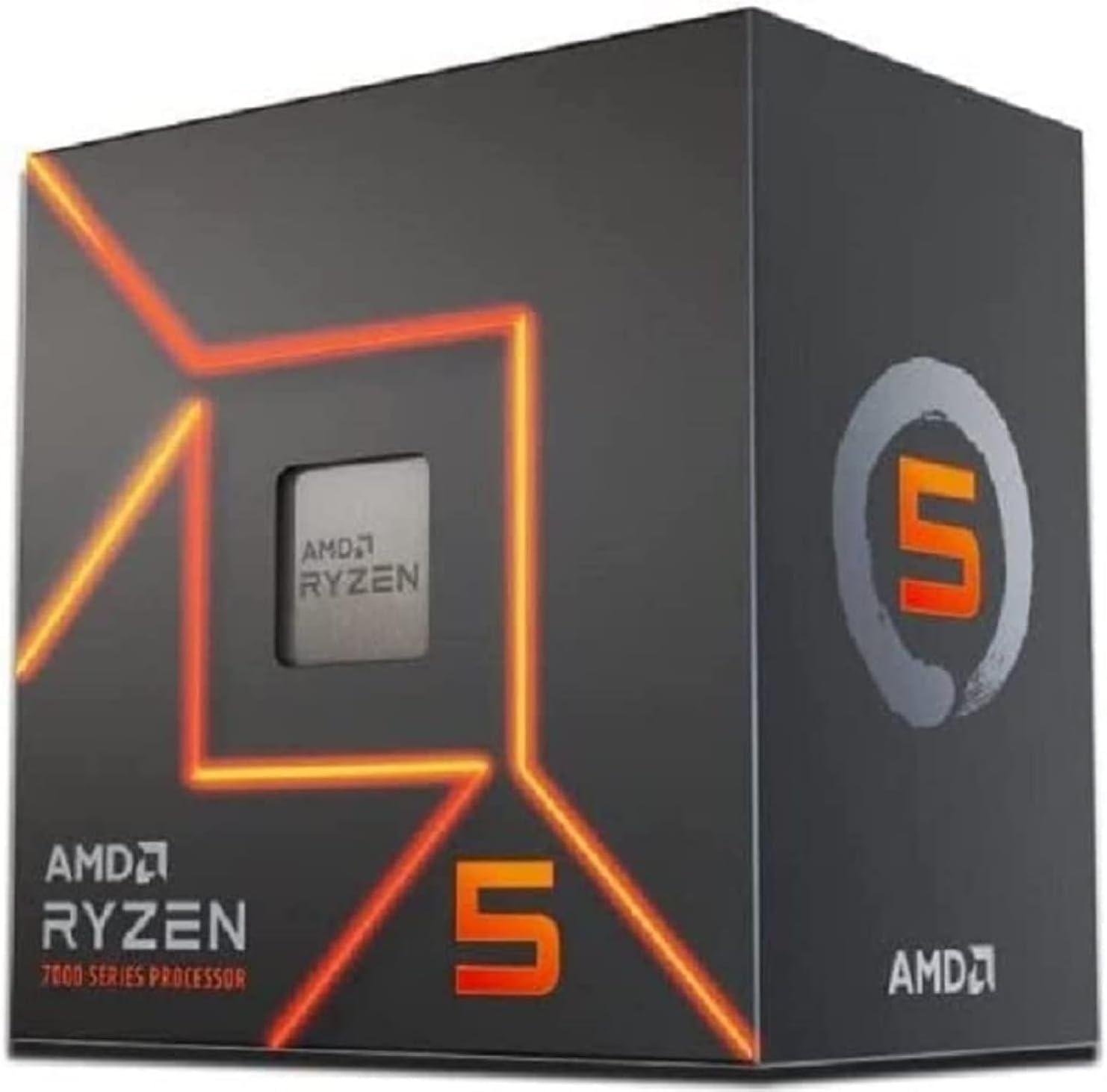

Name
AMD Ryzen™ 5 7600
Family
Ryzen
Series
Ryzen 7000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Regional Availability
Global
Former Codename
Raphael AM5
Processor Architecture
Zen 4
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5.1 GHz
Base Clock
3.8 GHz
L1 Cache
384 KB
L2 Cache
6 MB
L3 Cache
32 MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
AMD Wraith Stealth
Max. Operating Temperature (Tjmax)
95°C
Launch Date
01/14/2023
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

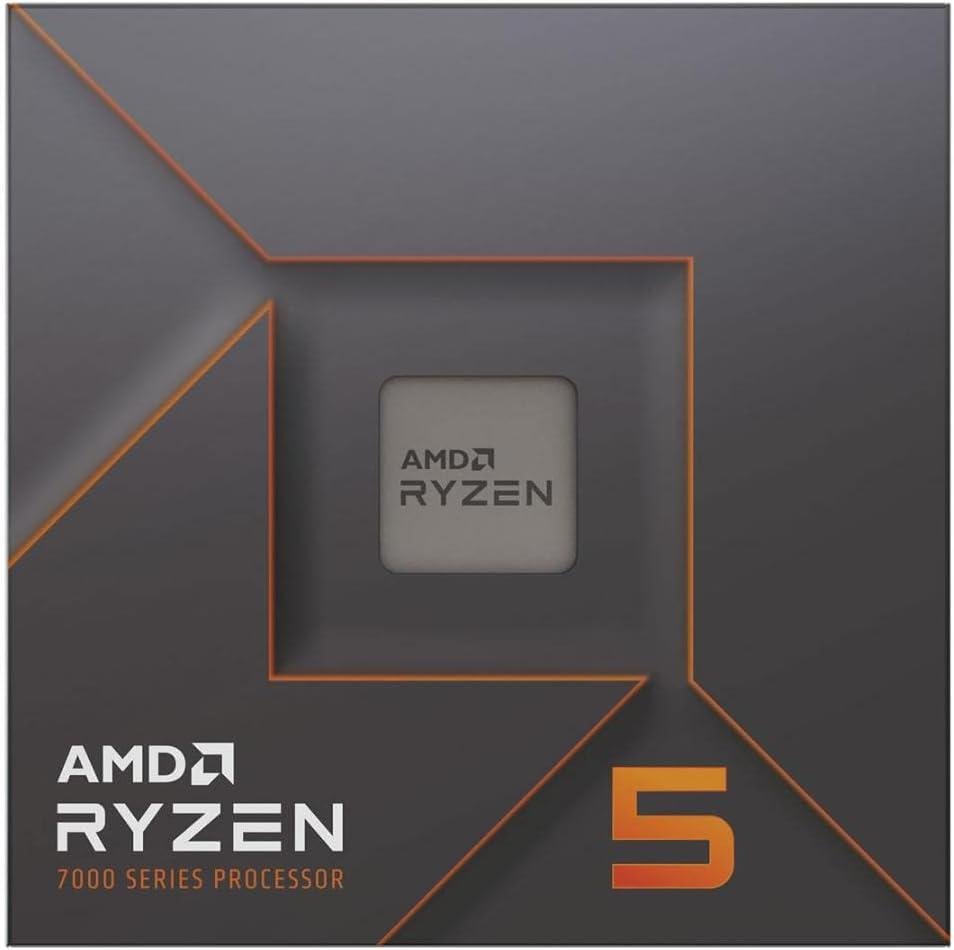

Name
AMD Ryzen™ 5 7600X
Family
Ryzen
Series
Ryzen 7000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Regional Availability
Global
Former Codename
Raphael AM5
Processor Architecture
Zen 4
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5.3 GHz
Base Clock
4.7 GHz
L1 Cache
384 KB
L2 Cache
6 MB
L3 Cache
32 MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
Not Included
Recommended Cooler
Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
95°C
Launch Date
09/27/2022
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Intel：LGA115X/1200/1700/1851/2011/2066
AMD：AM4/AM5
