Category Specification Model ZA-120B (forward blade, Black) Fan Size 120 × 120 × 28 mm Speed Range 700 – 2400 RPM (±10 %) Airflow 21.46 – 62.40 CFM Static Pressure 0.49 – 2.46 mmH₂O Noise Level 21.3 – 37.3 dB(A) Rated Voltage Fan: DC 12 V Rated Current Fan: 0.22 A Fan Power ~2.64 W LED Power ~3.55 W MTTF ≥ 20,000 h (25 °C) Bearing Type Hydraulic (fluid) bearing Connector 4-pin PWM (fan) + 3-pin ARGB (5V) Lighting Addressable RGB (ARGB) Use Case Case or radiator cooling with ARGB lighting support
Category Specification Model ZA-360BR (Reverse Blade) Unit Dimensions 362 × 123 × 28 mm Fan Type 3 × 120 mm PWM fans integrated as one unit Fan Speed 700 – 1800 RPM (±10 %) Airflow 19.46 – 44.58 CFM Static Pressure 0.29 – 1.71 mmH₂O Noise Level 17.3 – 31.6 dB(A) Rated Voltage Fan: DC 12 V / LED: DC 5 V Fan Current (Max) ~0.35 A LED Current (Max) ~1.35 A Fan Power (Max) ~4.20 W LED Power (Max) ~6.75 W Bearing Type Hydraulic (Fluid) Bearing Connector 4-pin PWM (fan), 3-pin 5 V ARGB (LED) MTTF (Life) ≥ 20,000 hours Lighting Addressable RGB (ARGB) Blade Design Reverse blade (designed for airflow direction and style) Use Case Case cooling / radiator fan unit
Category Specification Model ZA-360B Fan Unit Dimensions 362 × 123 × 28 mm (triple-fan integrated unit) Fan Speed 700 – 2400 RPM (±10%) Airflow 21.46 – 62.40 CFM Static Pressure 0.49 – 2.46 mmH₂O Noise Level 21.3 – 37.3 dB(A) Rated Voltage Fan: DC 12 V / LED: DC 5 V Fan Rated Current ~0.51 A LED Rated Current ~0.48 A Fan Power Consumption ~6.12 W LED Power Consumption ~2.4 W Bearing Type Hydraulic / Fluid bearing Connector 4-pin PWM (fan) + 3-pin ARGB (5 V) + LCD USB (if supported) MTTF (Life Expectancy) ≥ 70,000 hours (25 °C) Lighting Addressable RGB (ARGB) Use Case Case cooling / radiator support (designed as a 360 mm fan unit)

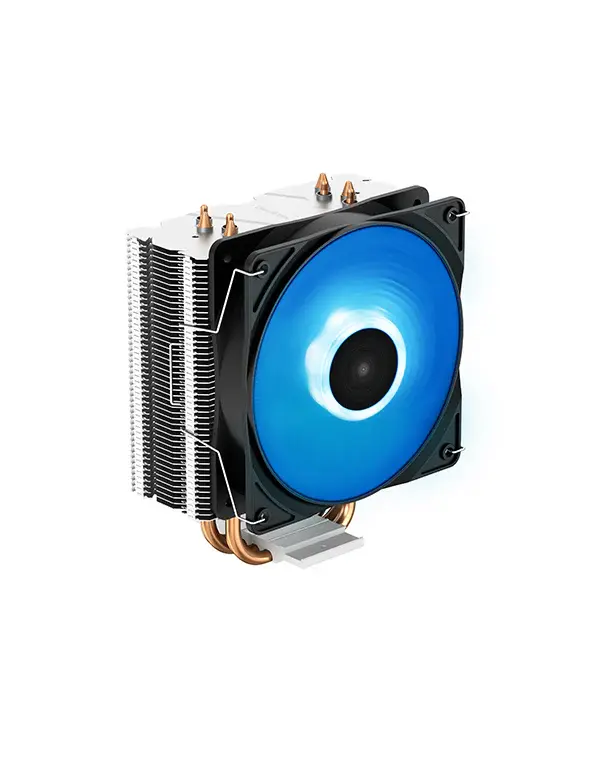

Category Specification Brand Deepcool Model Gammaxx 400 V2 Blue Type CPU Air Cooler Compatibility Intel & AMD Sockets Heat Pipes 4 × U-shaped copper heat pipes Base Copper base Fins Aluminum stack Fan Size 120 mm Fan Type PWM Fan Rated Voltage 12 V DC Fan Speed ~500 – 1800 RPM (PWM) Airflow ~? CFM (typical per 120 mm fan range) Static Pressure Moderate Noise Level Low-med (varies with speed) LED Lighting Blue LED (fan) Bearing Type Hydraulic / Fluid Dynamic Bearing TDP Support Mid-range CPUs Socket Support Intel LGA (multiple) / AMD AM4/AM5 (varies by bracket) Dimensions Compact tower profile Weight Light-to-moderate Included Accessories Mounting brackets, screws, fan, manual

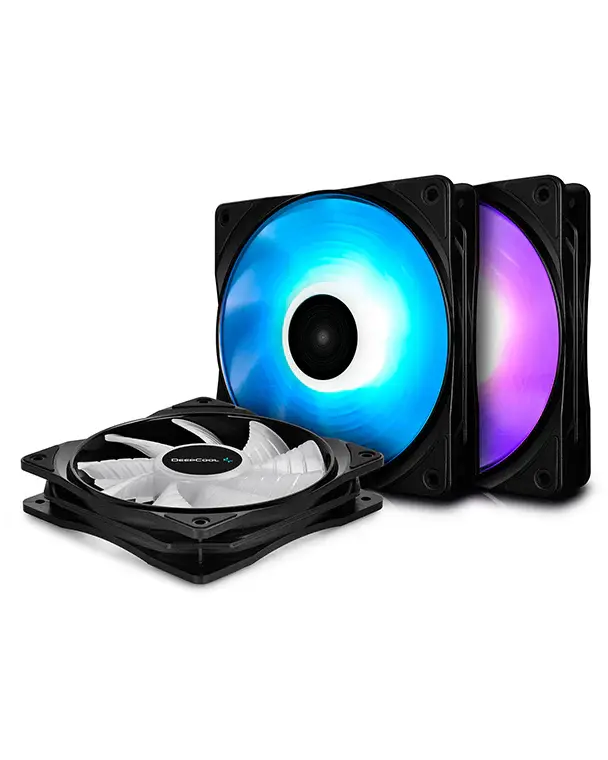

Category Specification Brand Deepcool Model RF120 Kit (3-in-1) Fan Size 120 mm Quantity 3 fans Fan Type PWM Case Fans Frame Color Black Connector 4-pin PWM fan connector Bearing Type Hydraulic / Fluid Dynamic Bearing Rated Voltage 12 V DC Fan Speed ~500 – 1700 RPM (PWM) Airflow ~54-60 CFM (per fan) Static Pressure ~1.3-1.5 mmH₂O Noise Level ~≤30 dBA (per fan) LED Lighting RGB Control PWM for fan speed / RGB controller or motherboard-sync for lighting Life Expectancy ~40,000 + hours Included Accessories Screws, cables, lighting controller (kit) Use Case Case airflow, cooling performance, visual lighting
