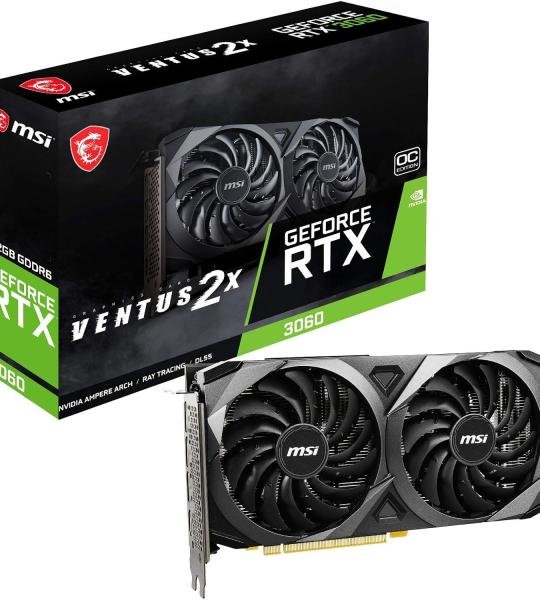

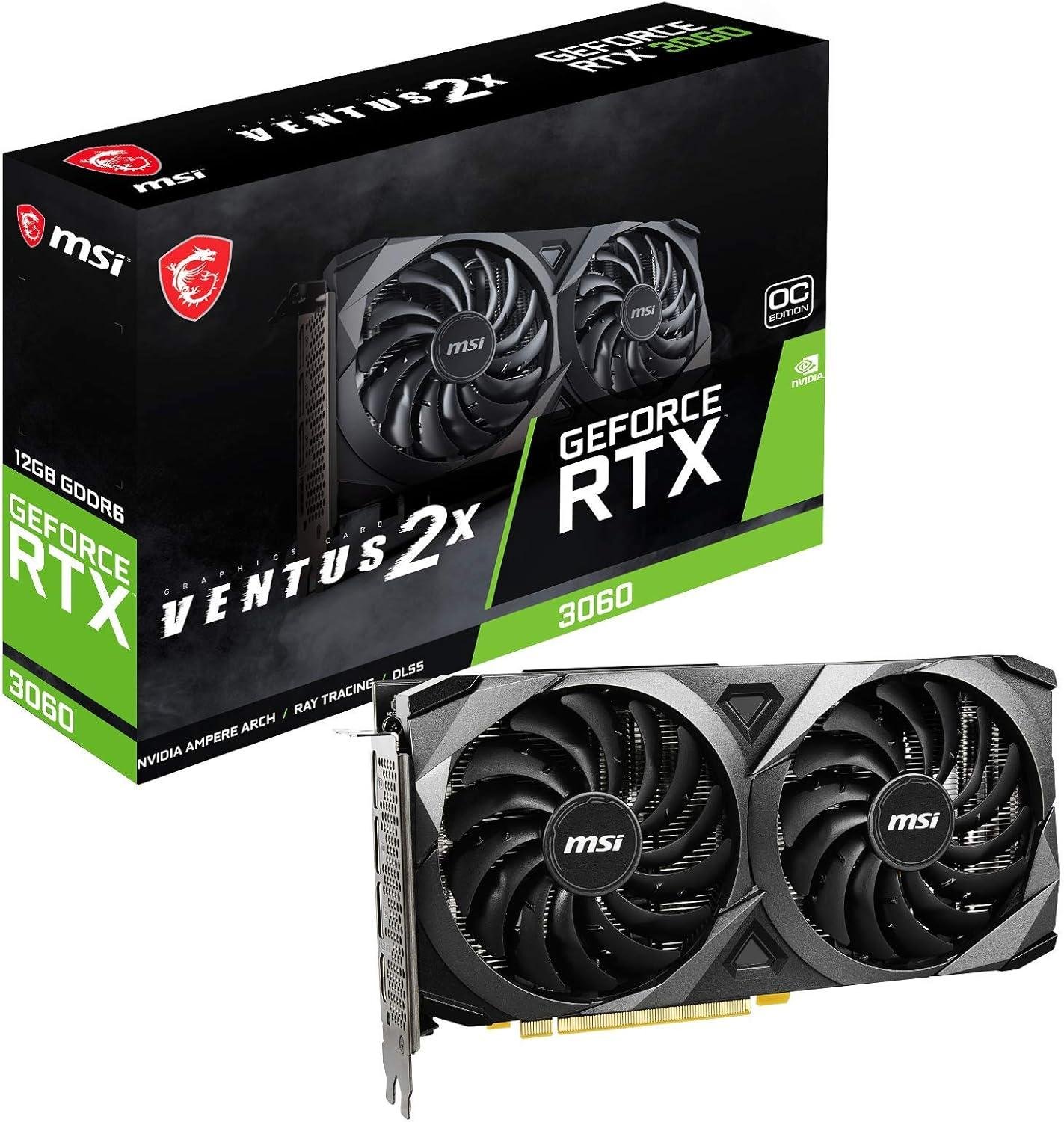

Feature Specification GPU NVIDIA GeForce RTX 3060 Architecture Ampere CUDA Cores 3584 Boost Clock 1807 MHz (OC mode) Memory 12GB GDDR6 Memory Interface 192-bit Memory Speed 15 Gbps Bandwidth 360 GB/s DirectX Support 12 Ultimate Ray Tracing Cores 2nd Generation Tensor Cores 3rd Generation Bus Interface PCI Express 4.0 x16 Output Ports 3x DisplayPort 1.4a, 1x HDMI 2.1 Max Resolution 7680×4320 (8K) Max Displays 4 Power Consumption (TDP) 170W Recommended PSU 550W Power Connector 1x 8-pin Cooling Dual Fan (VENTUS 2X) Dimensions 235 x 124 x 42 mm Weight ~675 g
Specification Details Manufacturer ASUS Series ROG STRIX GAMING Model RTX 4070 Ti SUPER OC GPU Architecture NVIDIA Ada Lovelace Manufacturing Process 5nm Memory 16GB GDDR6X Memory Bus 256-bit Memory Speed 21 Gbps CUDA Cores 8448 Boost Clock Up to ~2670 MHz (OC Mode) Interface PCI Express 4.0 Outputs 3× DisplayPort 1.4a1× HDMI 2.1a Maximum Resolution Up to 8K Supported Technologies Ray Tracing (3rd Gen)DLSS 3 with Frame GenerationNVIDIA ReflexG-SYNC Power Consumption ~285W Recommended PSU 750W Power Connector 16-pin (12VHPWR) Cooling System ROG STRIX Triple-Fan with Vapor Chamber Lighting Aura Sync RGB Use Case 1440p & 4K Gaming, Streaming, Content Creation
Category Specification Brand GIGABYTE Series GAMING OC Model Name GeForce RTX 5080 GAMING OC 16G Part Number GV-N5080GAMING-OC-16GD GPU Manufacturer NVIDIA GPU Model NVIDIA GeForce RTX 5080 GPU Architecture NVIDIA Blackwell Manufacturing Process TSMC Advanced Process CUDA Cores 10,752 Ray Tracing Cores 4th Generation Tensor Cores 5th Generation Base Clock Reference Clock Boost Clock 2730 MHz (Factory Overclocked) Memory Capacity 16 GB Memory Type GDDR7 Memory Speed 30 Gbps Memory Interface 256-bit Memory Bandwidth Up to 960 GB/s PCI Express Interface PCI Express 5.0 x16 Maximum Digital Resolution 7680 × 4320 Multi-Display Support Up to 4 Displays DirectX Support DirectX 12 Ultimate OpenGL Support OpenGL 4.6 Cooling System WINDFORCE Cooling System Cooling Design Triple Fan Fan Technology Hawk Fan, Alternate Spinning, 3D Active Fan Thermal Solution Vapor Chamber + Composite Heat Pipes Thermal Interface Server-Grade Thermal Gel RGB Lighting RGB Fusion Power Connector 1 × 16-Pin (12V-2×6) Recommended PSU 850 W Power Consumption Approx. 360 W Display Outputs 3 × DisplayPort 2.1a, 1 × HDMI 2.1b HDCP Support Yes VR Ready Yes DLSS Support DLSS 4 NVIDIA Reflex Supported NVIDIA Broadcast Supported AI Acceleration NVIDIA AI Engine Card Form Factor ATX Slot Size 3.5 Slot Card Dimensions 340 × 140 × 70 mm PCB Design Custom GAMING OC PCB Factory Overclocked Yes Supported OS Windows 10, Windows 11 Warranty 3 Years Box Contents Graphics Card, Power Adapter, VGA Holder, Manuals
