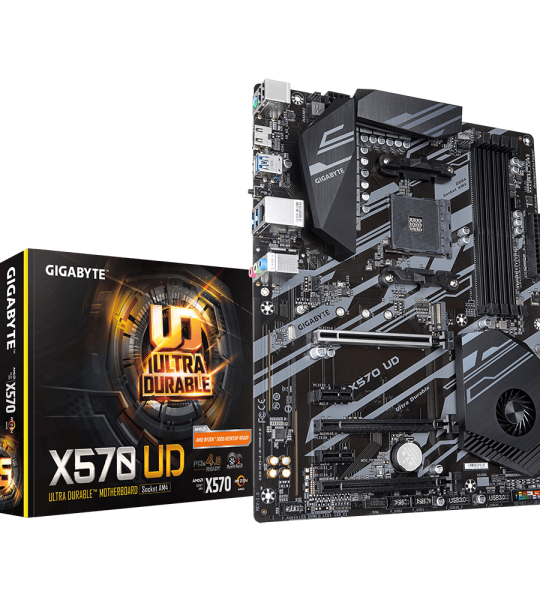

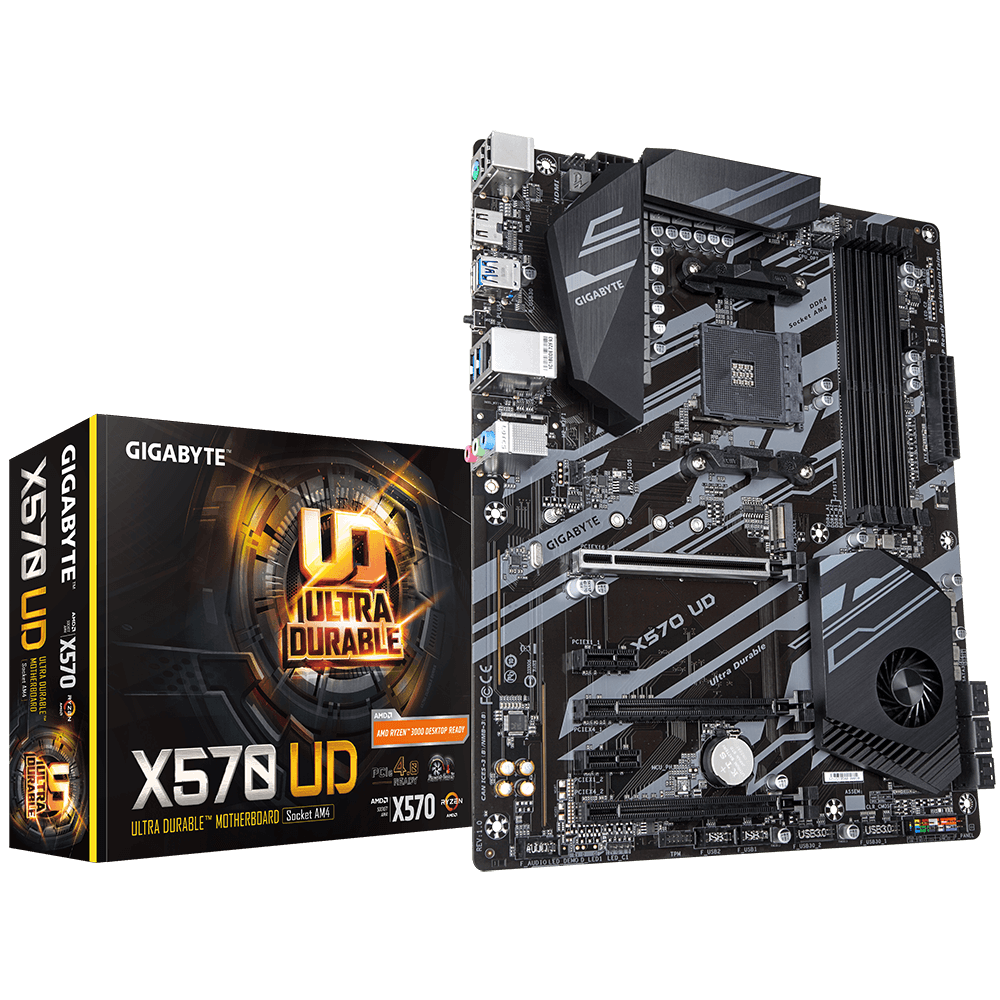

Brand GIGABYTE Model X570 UD CPU Socket Type AM4 CPU Type AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen/2nd Gen Ryzen / 3nd Gen Ryzen with Radeon Vega Graphics/2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.Chipset AMD X570 Number of Memory Slots 4x288pin (DDR4) Memory Standard 3rd Generation AMD Ryzen processors:
Support for DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
Support for DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modulesMaximum Memory Supported 128GB Channel Supported Dual Channel PCI Express 4.0 x16 Integrated in the CPU (PCIEX16):
- 3rd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- 2nd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
Integrated in the Chipset (PCIEX4/PCIEX1)
2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
* For 3rd Generation AMD Ryzen processors only.PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
* For 3rd Generation AMD Ryzen processors only.Serial ATA (SATA) 6 x SATA 6Gb/s M.2 Integrated in the CPU:
- 3rd Generation AMD Ryzen processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
- 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)SATA RAID 0/1/10 Onboard Video Chipset Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Maximum shared memory of 16GB
Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors only.Audio Chipset Realtek ALC887 Audio Channels 2/4/5.1-channel LAN Chipset Realtek GbE LAN chip Max LAN Speed 1Gbps Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacksOnboard USB 2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headersOther Connectors 1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumperForm Factor ATX LED Lighting RGB Dimensions (W x L) 12.0" x 9.6" Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectorWindows 11 Supported
