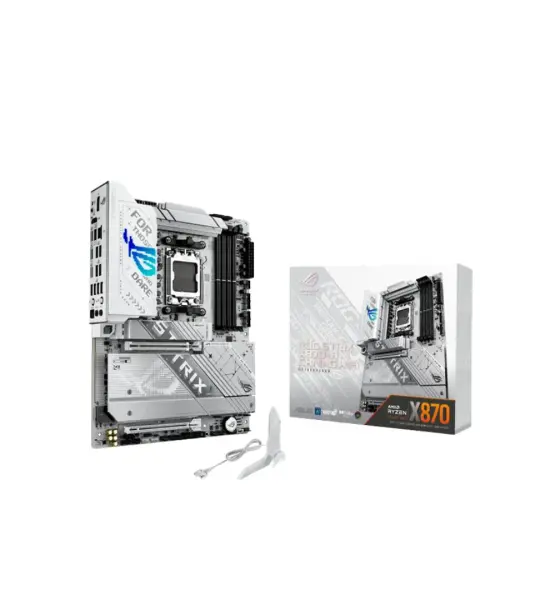

Category Details Chipset AMD X870 CPU Support AMD Ryzen 9000 Series (Zen 5) & Ryzen 7000 (AM5) Socket AM5 Form Factor ATX Memory Support 4× DDR5 DIMM, up to 192GB, up to 8000+ MT/s (OC), Dual Channel, AMD EXPO & Intel XMP PCIe Slots 1× PCIe 5.0 x16 (GPU), 1× PCIe 4.0 x16 (x4), 2× PCIe 4.0 x1 M.2 Slots 1× PCIe 5.0 x4, 3× PCIe 4.0 x4 SATA Ports 4× SATA 6Gb/s Networking (LAN) Intel 2.5Gb Ethernet Wireless WiFi 7, Bluetooth 5.4 USB Ports (Rear I/O) 1× USB 3.2 Gen 2x2 (20Gbps Type-C), 2× USB 3.2 Gen 2 (10Gbps), 4× USB 3.2 Gen 1, 4× USB 2.0 Audio ROG SupremeFX 7.1 HD Audio Codec ALC4080, DTS Sound Unbound Power Stages 16+2 Power Stages, ProCool II connectors, Alloy Chokes, Durable Capacitors Cooling Features Large VRM heatsinks, multiple fan headers, hybrid fan control, M.2 heatsinks RGB ASUS Aura Sync RGB Lighting, RGB & ARGB headers Expansion Q-Release PCIe Slot, Q-Latch for M.2 Dimensions ATX – 30.5 cm × 24.4 cm
Category Specification Brand MSI Series MPG (MSI Performance Gaming) Model Name MPG Z890 EDGE TI WIFI WHITE Color White / Silver (Titanium Design) Form Factor ATX Chipset Intel Z890 CPU Socket LGA 1851 Supported CPUs Intel Core Ultra 200 Series (Arrow Lake) CPU Power Design Advanced Digital Power Design VRM Design High-Phase VRM with Extended Heatsinks VRM Cooling Enlarged Heatsink + Heatpipe Memory Type DDR5 Memory Slots 4 × DDR5 DIMM Maximum Memory Capacity Up to 256 GB Memory Speed Support DDR5 9000+ (OC) Memory Architecture Dual Channel Memory Features XMP 3.0 Support Integrated Graphics Support Yes (CPU Dependent) Primary PCIe Slot 1 × PCIe 5.0 x16 (Steel Armor) Additional PCIe Slots PCIe 4.0 Slots Multi-GPU Support Not Supported M.2 Slots Multiple M.2 Slots M.2 Interface PCIe 5.0 / PCIe 4.0 (Slot Dependent) M.2 Cooling M.2 Shield Frozr SATA Ports 4 × SATA 6Gb/s RAID Support RAID 0 / 1 / 5 / 10 Wired LAN 2.5G Intel LAN Wireless Wi-Fi 7 Bluetooth Bluetooth 5.4 USB Rear Ports USB-C (Thunderbolt Ready), USB 3.2 Gen2x2, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 USB Front Headers USB-C Front Header, USB 3.2 Gen1 Audio Chipset Realtek High-Definition Audio Audio Channels 7.1-Channel HD Audio Audio Features Audio Boost HDMI Output 1 × HDMI DisplayPort Output 1 × DisplayPort Maximum Display Resolution Up to 8K (CPU Dependent) BIOS Type UEFI AMI BIOS BIOS Features Flash BIOS Button, Clear CMOS RGB Support MSI Mystic Light RGB Headers RGB & ARGB Headers Cooling Headers Multiple PWM Fan & AIO Pump Headers PCB Design High-Density Multi-Layer PCB Armor Features Steel-Reinforced PCIe Slot TPM Support Intel PTT / TPM 2.0 Operating System Support Windows 11 Target Usage High-End Gaming, Creator Builds, White PC Builds Warranty 3 Years
Category Specification Brand MSI Model PRO B840-P WIFI Product Type ATX Motherboard Chipset AMD B840 CPU Socket AM5 Supported Processors AMD Ryzen™ 7000 / 8000 / 9000 Series Desktop CPUs Form Factor ATX Memory Type DDR5 Memory Slots 4 × DDR5 UDIMM Maximum Memory 256 GB Memory Speeds Supported DDR5-4800 / 5600 / 5600-8000 MT/s (OC) Memory Channel Dual-Channel PCI Express x16 1 × PCIe 4.0 x16 PCIe x4 Slot 1 × PCIe 3.0 x4 PCIe x1 Slots 3 × PCIe 3.0 x1 M.2 Slots 2 × M.2 PCIe 4.0 x4 SATA 6Gb/s Ports 4 RAID Support RAID 0 / RAID 1 / RAID 10 (SATA) Audio Codec Realtek ALC897 Audio Channels 7.1-Channel HD Audio LAN Realtek 2.5G LAN Wi-Fi Wi-Fi 7 (802.11be) Bluetooth Bluetooth 5.4 Rear Video Output 1 × HDMI 2.1 (4K @ 60Hz) USB Ports (Rear) USB 3.2 Gen 2 Type-A, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0 Internal USB Headers USB 2.0 / USB 3.2 Gen 1 / USB 3.2 Gen 2 Fan / Cooling Headers CPU Fan, System Fan, Water Pump Header Power Connectors 24-pin ATX, 8-pin +12V CPU LED / RGB Headers Addressable RGB Headers BIOS Features Clear CMOS Button, Flash BIOS Button, EZ Debug LED Expansion Support PCIe 4.0 Graphics, High-Speed Storage Operating System Support Windows 11 / Windows 10 Board Dimensions Standard ATX (approx. 305 × 244 mm) Warranty 3 Years Included Accessories M.2 Clip(s), SATA Cables, Wi-Fi Antenna, Manual
Category Specification Model / Platform MSI X870 GAMING PLUS WIFI Chipset AMD X870 CPU Socket / Support AM5 — Supports AMD Ryzen 7000 / 8000 / 9000 series desktop processors Form Factor ATX (304.8 × 243.8 mm) Memory 4 × DDR5 UDIMM slots, Max Capacity 256 GB Supported speeds: DDR5 4800–5600 (JEDEC), up to 8400+ (OC) Supports AMD EXPO profiles PCIe & Expansion 3 expansion slots: • PCI_E1: PCIe 5.0 x16 (from CPU) • PCI_E2: PCIe 4.0 x4 (chipset) • PCI_E3: PCIe 3.0 x1 (chipset) Storage / M.2 / SATA 4 × M.2 slots: • M.2_1 (from CPU) supports PCIe 5.0 x4 (2280/2260) • M.2_2 (from CPU) supports PCIe 4.0 x4 (2280/22110) • M.2_3 & M.2_4 (from chipset) support PCIe 4.0 x2 (2280) 4 × SATA III (6 Gbps) ports RAID support for NVMe (RAID 0 / RAID 1) USB / I/O Rear USB: 2 × USB 2.0, 4 × USB 10 Gbps Type-A, 1 × USB 20 Gbps Type-C Front headers: 4 × USB 2.0, 4 × USB 5 Gbps (Type-A), 1 × USB 10 Gbps Type-C LAN / Wi-Fi / Bluetooth 5 Gbps LAN (Realtek 8126VB) Wi-Fi 7 + Bluetooth 5.4 Audio Realtek ALC4080 7.1-channel HD Audio with “Audio Boost” Power / VRM 14 + 2 + 1 Duet Rail Power System Dual 8-pin CPU power connectors Enhanced heatsink design with thermal pads (7 W/mK) and extended MOSFET heatsinks Cooling / Fan Headers CPU fan, pump/system combo header, 5 system fan headers RGB / Headers 3 × Addressable RGB V2, 1 × RGB LED header BIOS / Other Features Flash BIOS button, Clear CMOS button, pre-installed I/O shield, EZ DIY features (EZ M.2 clip, EZ PCIe clip, EZ antenna, etc.) Graphics Output DisplayPort and HDMI outputs (work only with CPUs that include an iGPU) Max resolution: 4K @ 60Hz Release / Availability 2025 (current generation)

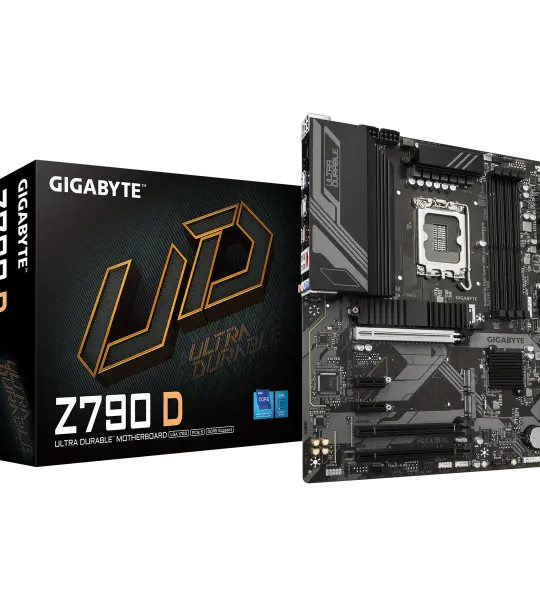

Feature Specification CPU & Chipset Intel LGA 1700 socket; supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors; Intel Z790 chipset VRM & Power Design 16+1+1 phases digital VRM; 6-layer PCB with 2X copper; 8+8 phases parallel power design Memory (RAM) 4 × DDR4 DIMM slots (dual-channel); up to 128 GB; supports XMP 3.0 memory modules Storage 3 × PCIe 4.0 ×4 M.2 slots with Thermal Guard; 6 × SATA 6 Gb/s ports (RAID 0/1/5/10) Expansion Slots 1 × PCIe 5.0 ×16 slot (reinforced); 2 × PCIe 4.0 ×16 slots; 2 × PCIe 3.0 ×1 slots Networking 2.5 GbE LAN; no Wi-Fi Rear I/O Ports 2 × USB 2.0; 4 × USB 3.2 Gen 1; 1 × USB 3.2 Gen 2; 1 × USB 3.2 Gen 2x2 Type-C; 1 × HDMI 2.0; 1 × DisplayPort; 1 × RJ-45 LAN; 3 × audio jacks; 1 × S/PDIF; 1 × Q-Flash Plus button Internal Headers 1 × USB 3.2 Gen 1 Type-C; 2 × USB 3.2 Gen 1; 2 × USB 2.0; 1 × USB 3.2 Gen 2x2 Type-C; 1 × USB 3.2 Gen 2; 1 × RGB LED header; 1 × Addressable LED header; 1 × TPM header; 1 × Clear CMOS jumper Audio Realtek ALC897 codec; 7.1-channel HD audio; high-end audio capacitors; S/PDIF out Cooling & DIY Features Smart Fan 6; multiple temperature sensors; hybrid fan headers with FAN STOP; EZ-Latch PCIe 4.0 ×16 slot with quick release design; M.2 Thermal Guard Form Factor ATX (305 × 244 mm) Special Features Multi-key (configurable BIOS functions); Q-Flash Plus (BIOS update without CPU, memory, or graphics card); RGB Fusion (addressable and RGB LED headers)
